Transtig 230i DC Stick/Tig Ready 2 Weld Package with Case

DEMO AND  RENTAL UNITS AVAILABLE

SKU: 49,0410,0018

Transtig 230i DC Stick/Tig Ready 2 Weld Package with Case

TransTig 230i. This power source can optionally be supplied with a water-cooling system and is suitable for all welding applications apart from aluminium. Comes as a  multivoltage version, meaning they can be used anywhere in the world – even with different mains voltages.

Features:

• High Frequency Ignition
• 2 kHz pulse welding as standard on all devices
• Tig Welding Range 3-230 Amps
• Stick Electrode Range 10-190 Amps
• 100 foot Extension Cables Available (Upt o 300 feet from power source)

PERFORMANCE ON 120 VOLTS USING A 20 AMP CIRCUIT:

• Tig 35% 170 Amps / Stick 120 Amps
• Tig 60% 140 Amps / Stick 105 Amps
• Tig 100% 120 Amps / Stick 85 Amps

PERFORMANCE ON 240 VOLTS USING A 20 AMP CIRCUIT"

• Tig 35% 230 Amps / Stick 190 Amps
• Tig 60%  205 Amps / Stick 155 Amps
• Tig 100% 170 Amps / Stick 125 Amps

WEIGHTS AND SIZES:

• DIMENSIONS WITH HANDLE 22.0 / 8.3 / 14.5 in.
• WEIGHT  15.9 Kg / 35.1 lb

PACKAGE COMES COMPLETE WITH THE FOLLOWING:

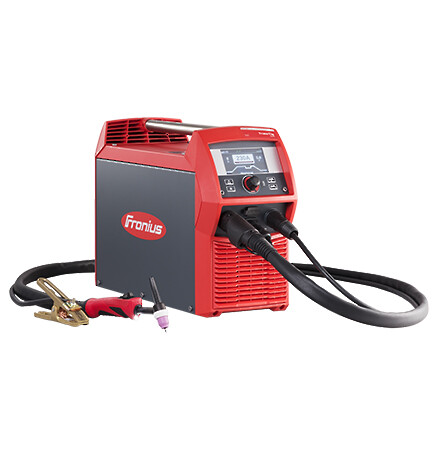

4,075,217,631 Transtig 230i Power Source MV/B

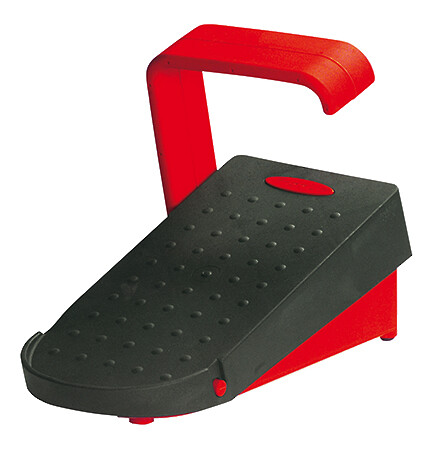

4,046,112 Wireless Foot Pedal (Blue Tooth)

4,051,305 Tig Hose Pack Multi Lock (power cable) THP 220i G ML/F/UD/13.12ft/LED

44,0350,4409 Tig Torch Body (Multi Lock) TTB 220P G ML/70°/L65

43,0004,0479 Ground Cable No.4 gauge (25mm²) 4m/13ft 60% Duty Cycle 250A Male Connector Dinse  35mm² with earth clamp

42,0441,0005 Gas Regulator (Flowmeter)

42,0001,3541 Gas Adapter (Used to convert to B Size Hose Fittings)

44,0350,0781 Tig Consumable Kit (Fits torch body's TTB260A / TTG2200A / TTW5000A

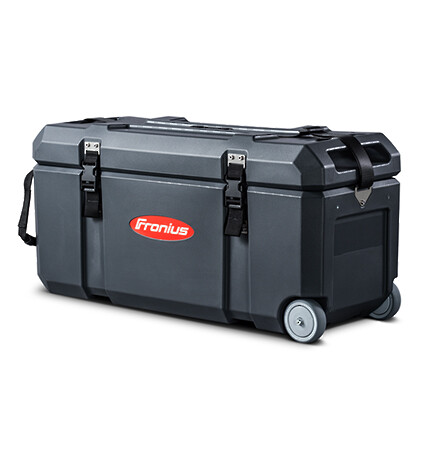

42,0510,0283 Tool Case Caddy with Rear Wheels Model 120
