ACETYLENE Regulator CGA-520 Light Duty B Tank Size 2

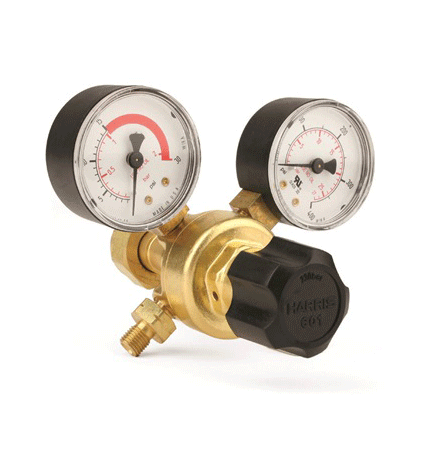

Model 601 ACETYLENE REGULATOR B TANK

Description: Single Stage Economical Regulator

Light Duty CGA-520 Inlet 9/16-18 L.H. Male Outlet Connection B Size

Maximum Inlet Pressure 400 PSI. Do Not Exceed 15 PSI discharge.

• Compact and Economical
• 7-Year Warranty
• Made in the USA
• Capacity:  Light Duty
• C_v:  0.08
• Gauges: 50 mm ABS plastic
• Pressure Regulation:  0.43 PSIG/100 PSIG
• Seat:  One-piece encapsulated seat design with internal filter and PTFE Teflon^® seat
• Certifications:  UL^® listed / CGA E-4
• Featured In:  Expert Series^® kits, air fuel equipment kits, Port-A-Torch^®
• Weight:  1.39 lbs. / 0.63 kg.

Features:

• Compact design at an economical price
• For applications where weight, cost and size are critical factors
• Higher end features at an economical price
• Brass body and bonnet for longer service life
• Large plastic knob for easy grip and precise adjustments
• 50mm ABS plastic dual scale easy-to-read gauges
• One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
• Neoprene diaphragm for improved pressure control
• UL® listed

Specifications:

• Country of Origin: United States
• Warranty Length: 7 Years
• Approval: UL
• Product Ship From City: Mason; Gainesville; Cleveland
• Product Ship From State Country: OH; GA; OH
• Product Ship From Zip Code: 45040; 30504; 44117
• Special Order: No
