Diversion 180 AC DC Tig 120/240 volt

Details:

Perfect for the personal user, this AC/DC TIG machine upgrade has both 120V and 240V input power capability.

Features:

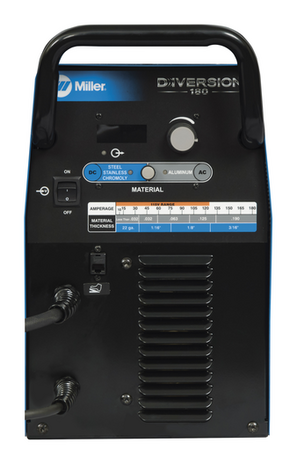

• It's as easy as "1, 2, 3" to set your machine and start welding! 1. Power-up 2. Select material type 3. Set material thickness range   We've also added a digital display so you know exactly what your settings are.
• Miller's Multi Voltage Plug (MVP™) allows you to connect to common 120 or 240 V power receptacles without the use of any tools. Simply chose the plug that fits the receptacle and connect it to the power cord.
• By utilizing an inverter-based AC/DC power source, a more efficient (less energy is used) and consistent welding arc is provided compared to older transformer based TIG machines.

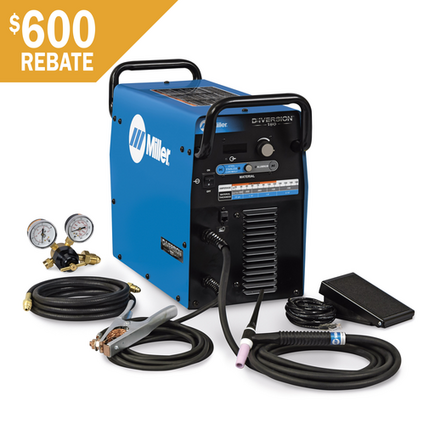

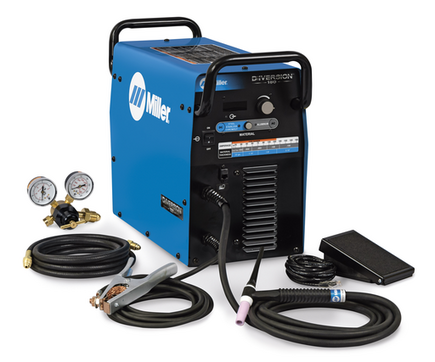

• The package comes standard with a Diversion Series foot control and the Weldcraft A-150 TIG torch. This 150 amp, air-cooled torch features a compact and durable design ideal for both the professional and hobbyist welder. The Diamond Grip head design has ergonomic contact points for thumb and fingers, providing a more comfortable grip.
• Whether it's in the shop, garage or at the race track, at only 50 lbs it can be taken anywhere. You can't do that with those heavy transformer machines!
• Our Fan-On-Demand™ cooling system only operates when needed. This cuts down on fan noise, along with reducing power consumption and contaminants drawn into the machine.
• Our Auto-Postflow feature optimizes postflow time based on welding amperage. This allows for proper shielding of both the weld end zone and electrode every time without waste of gas or need for adjustment.
• Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.

Specifications:

• Country of Origin: United States
• Length: 23.875
• Width: 9.875
• Height: 17
• Weight: 50
• Max Open Circuit Voltage (VDC): 80
• Current Type: AC / DC
• TIG Specs: [[0691136c07f5]], [[113bff35ab42]], [[0a5bd7ab9607]], [[a5af3cd0b6aa]], [[773d1b3c1d8d]], [[d347fa3190de]]
• Material Thickness: [[80c7a4a2dd6a]], [[a6743827510e]], [[15874614e230]], [[6619e6133272]], [[61815b3485a6]]
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Metal Type: Steel|Aluminum
• Weld Output: CC
• Input Phase: 1-Phase
• Amperage Min (A): 10
• Amperage Max (A): 180
• Amperage Range: 10 A - 180 A
• Min Thickness - Steel - in: 0.03
• Max Thickness - Steel - in: 0.19
• Display Min Thickness - Steel: 0.025 in. (0.6 mm)
• Display Max Thickness - Steel: 3/16 in. (4.8 mm)
• Display Min Thickness - Aluminum: 0.030 in. (0.75 mm)
• Display Max Thickness - Aluminum: 3/16 in. (4.8 mm)
• Min Thickness - Aluminum - in: 0.03
• Max Thickness - Aluminum - in: 0.19
• Input Voltage: 110/115/120 V|208 V|220/230/240 V
• Input Hz: 50/60 Hz
• Material Thickness Display: Aluminum 0.030 in. (0.75 mm) - 3/16 in. (4.8 mm)|Steel 0.025 in. (0.6 mm) - 3/16 in. (4.8 mm)
