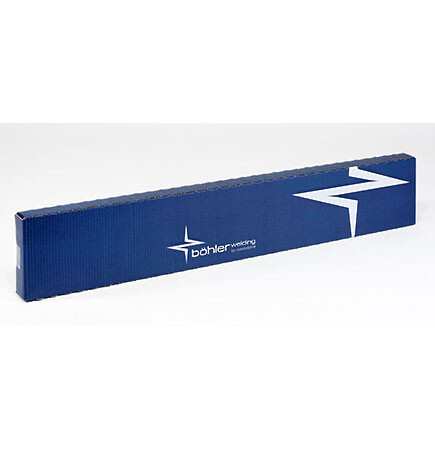

Thermanit ER90S-B9 Tig Rod MTS 3 LNi 3/32" x 10#
Based on unit price: $82.00
- Description
- Spec. Sheets
Thermanit ER90S-B9
Trade Name MTS 3 LNi
#1 Rated Product for applications using 9Cr-1Mo-V-Nb weld metal
Provide Test Requirements "class and level of testing" and Lock 8 will process the data to match up existing Heat/Lot numbers for your application.
Thermanit MTS 3 LNi is a solid filler rod designed for manual gas tungsten arc welding. The 9Cr-1Mo-V-Nb type weld metal exhibits a fully tempered martensitic microstructure with favorable mechanical properties in post weld heat treated condition. The range of application covers joint welding of similar alloyed creep strength enhanced ferritic steels like ASTM grade 91 tube, pipe, plate, forgings and castings, used in the thermal power and petrochemical industry. The chemical composition is optimized in order to provide a high creep resistant and ductile weld metal after post weld heat treatment along with low level of trace elements. Thanks to the restricted Mn+Ni content of less than 1.0 wt. % the AC1 temperature is certainly above 1455ºF.
Welding of Base Materials:
Similar alloyed creep resistant steels and castings like,
1.4903 X10CrMoVNb9-1, 1.4955 GX12CrMoVNbN9-1
ASTM Grade 91, T91, P91, F91, FP91, WP91,C12A
10Cr9Mo1VNbN
STPA28, STBA28
