ESAB® EMP 210 MultiProcess Welder

Details:

ESAB® EMP 210 inverter-based welding system is ready to tackle steel, stainless and aluminum projects. Featuring professional-grade arc characteristics and full-featured digital controls which enable fine-tuning of the arc performance to deliver superior welds. Weighs just 29 Ibs. and offer dual-voltage 120/230V flexibility. Take this welder wherever work takes you – around the shop, in the field or at home in your garage. Spool gun-ready for MIG aluminum with optional spool gun and optional remote foot control for Lift TIG Welding

Features:

• Multi-Process MIG/Flux Cored/Stick/Lift TIG welding system with a 10 – 200A output. Stable Lift TIG arc at low amperage for total control; power to run Stick electrodes up to 5/32-inch
• Digital controls with large easy-to-read LED display enable fast, easy and more accurate operation
• improve welding results with advanced functions typically found on industrial machines: MIG wire run- in, burn-back, variable inductance, 2T/4T trigger control, Lift TIG arc starts, gas pre and post-flow, Stick hot start and arc force control
• Portability and flexibility to weld in a variety of locations weighs 29 Ibs, connect to 120/230V primary power and are compatible with 10 kVa generators

Specifications:

• Country of Origin: China
• Input Voltage: 115/230V
• Physical Size: 23 X 18 X 18.5
• Wire Size: .024" - .035"
• Wire Feed Speed: 80-450 ipm
• Carcinogen: Lead
• Reproductive: Dual Short Form
• Duty Cycle: MIG- 115V: 90A @ 40%, 57A @ 100% | 230 V: 200A @ 15%, 77A @100% | Stick- 115V: 70A @ 40%, 44A @ 100% | 230 V: 170A @ 20%, 66A @ 100% | Lift TIG- 115V: 90A @ 40%, 57A @ 100% | 230V: 200A@15%, 77A @ 100%

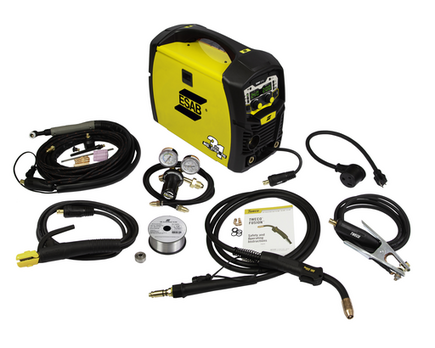

• Includes: Power Source | Tweco Fusion 180A MIG Torch | Premium Ground Clamp | Victor Gas Regulator | Tweco Electrode Holder | Tweco 17V TIG Torch | 2lb OK AristoRod 12.5 Wire Spool
• Process: MIG (GMAW) | DC TIG (GTAW) | Flux Cored (FCAW) | STICK (SMAW)
• Wire Spool Size: 4 & 8 in.
• Output Amps (Max): 200A
• Amp Range: 10-200 A
• Maximum Plate Thickness: 3/8"
• Electrode Capacity: 5/32"
