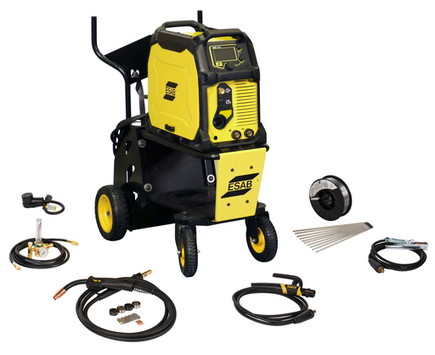

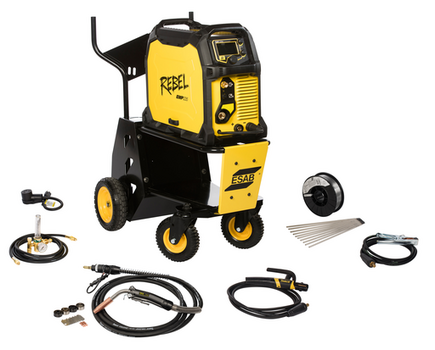

ESAB Rebel 235ic Multi-Process Welder with Cart

Details:

The ESAB® Rebel™ EMP 235ic Welding Machine with cart offers 110V/230V flexibility and some of the most innovative welding technology available. This true multiprocess system is designed for MIG Flux-cored STICK and TIG welding. Built in wire feeder is 48 and 12 inch spool compatible. Weighing only 53lbs with a rated output 235A @40% Duty Cycle (MIG) 210A @40% Duty Cycle (STICK) 240A @40% Duty Cycle (TIG).

Features:

• Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
• Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
• Power to Perform - have the confidence with Rebel 235ic to run the full range of .035 in. wire- short arc and spray transfer. Also up to .045 in solid wire and up to .052 in. cored wire. Plus, rods up to 5/32 in. and TIG rods up to 3/16 in.
• 110V and 230V dual input voltage
• Weld parameter storage
• Trigger lock
• Short arc and Spray transfer capable
• 4", 8" and 12" spool capable
• Hot start and Arc Force (Stick mode only)
• Voltage trim, Inductance, Burn back, Pre-flow/Post-Flow Adjustment Capable (MIG mode only)
• Lift arc (TIG mode only)
• IP23S

Specifications:

• Country of Origin: China
• Trade Name: Rebel™ | Rebel™ EMP 235ic
• Input Voltage: 120 V | 230 V
• Phase: Single Phase
• Physical Size: 26.5 x 11.5 x 19.5
• Wire Size: 0.023" - 0.045"
• HZ: 50/60 Hz
• Wire Feed Speed: 60 - 700 ipm
• Carcinogen: Lead
• Reproductive: Dual Short Form
• Duty Cycle: CC: Stick - 120 VAC - 85 Amps At 23.4 V - 40% Duty Cycle | CC: Stick - 230 VAC - 210 Amps At 28.4 V - 40% Duty Cycle | CC: TIG - 120 VAC - 130 Amps At 15.2 V - 40% Duty Cycle | CC: TIG - 230 VAC - 240 Amps At 19.6 V - 40% Duty Cycle | CV: MIG/Flux Cored - 120 VAC 130 Amps At 20.5 V - 20% Duty Cycle (20A Circuit Breaker) | CV: MIG/Flux Cored - 230 VAC - 235 Amps At 25.75 V - 40% Duty Cycle
• Includes: Power supply | Welding Cart | 15' 250A MIG gun | 10' 200A electrode holder | 10' ground clamp with leads | Argon flow gauge regulator with 12.5' gas hose | Ten 7018 Stick Electrodes | 70S-6 .035 10-lb MIG wire sampel spool | Spare nozzle, diffuser, 2 contact tips | Drive roll kit | Material thickness guide | Spare .035 conduit liner | 120V and 230V plugs
• Other: with Cart
• Process: Flux Cored (FCAW) | MIG (GMAW) | Stick (SMAW) | TIG DC (GTAW)
• Wire Spool Size: 4 in. | 8 in | 12 in.
• Output Amps (Max): 250 A
• Output Mode: CC/CV
• Amp Range: 5 - 250 A
• Lead Cord Length: 10 ft.
• Maximum Plate Thickness: 1/2"
