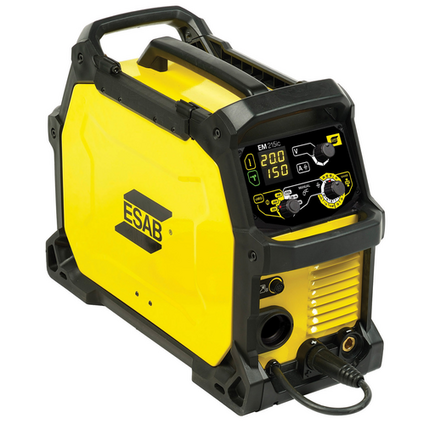

ESAB® Rebel™/ Rebel™ EMP 215ic Multi-Process Welder, 120/230 Volt, Single Phase

Details:

The Rebel EMP 215ic offers 120/230 VAC flexibility and some of the most innovative welding technology available. A breakthrough design inspired by professional welders, the Rebel EMP 215ic is a complete MIG/MAG/DC TIG/Stick package ready to weld anything – mild steel, aluminum, stainless steel – and go anywhere.

Features:

• True multi-process performance for best-in-class MIG/MAG, Flux-Cored, Stick, (including cellulosic electrodes), DC LIFT TIG, and DC Pulse LIFT TIG welding with Rebel EMP 215ic
• Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
• Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
• 110V and 230V dual input voltage
• Weld parameter storage
• Trigger lock
• Short arc and Spray transfer capable
• 4", 8" and 12" spool capable.
• IP23S

Specifications:

• Country of Origin: China
• Trade Name: Rebel™ EMP 215ic | Rebel ™
• Input Voltage: 120 V | 230 V
• Phase: Single Phase
• Physical Size: 32 x 12 x 19.8
• Wire Size: 0.023" - 0.045"
• HZ: 50/60 Hz
• Wire Feed Speed: 59 - 476 ipm
• Carcinogen: Lead
• Reproductive: Dual Short Form
• Duty Cycle: SMAW/Stick - 120 VAC - 130 Amps At 25.2 V - 20% Duty Cycle | SMAW/ Stick - 230 VAC - 235 Amps At 26 V - 25% Duty Cycle | TIG - 120 VAC - 130 Amps At 15.2 V - 40% Duty Cycle | TIG - 230 VAC - 200 Amps At 18 V - 20% Duty Cycle | MIG/MAG - 120 VAC 130 Amps At 20.5 V - 20% Duty Cycle | MIG/MAG - 230 VAC - 235 Amps At 26 V - 15% Duty Cycle

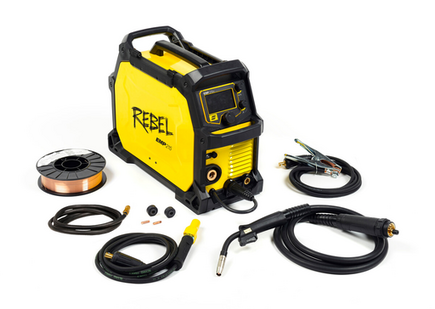

• Includes: Power supply | 10' 180A MIG/MAG gun |Victor Gas Regulator/FlowGauge| Gas hose 10ft |Tweco return cable kit 10ft. |Tweco electrode holder 10 ft OKC50|17V Style TIG torch with consumables | ESAB OK AristoRod 12.50 2.2 lbs| Feed rolls 0.023/0.030 in V fitted, 0.030/0.035in. V and 0.030/0.035in. VK| Velocity Contact Tips 0.023,0.030,0.0.035in| power adapter 230V/120V NEMA 6-50R to NEMA 5-15P | Owner's manual
• Process: Flux Cored (FCAW) | MIG (GMAW) | Stick (SMAW) | TIG DC (GTAW)
• Wire Spool Size: 4 in. | 8 in
• Output Amps (Max): 235 A
• Output Mode: CC/CV
• Amp Range: 5 - 240 A
• Lead Cord Length: 6.5 ft.
