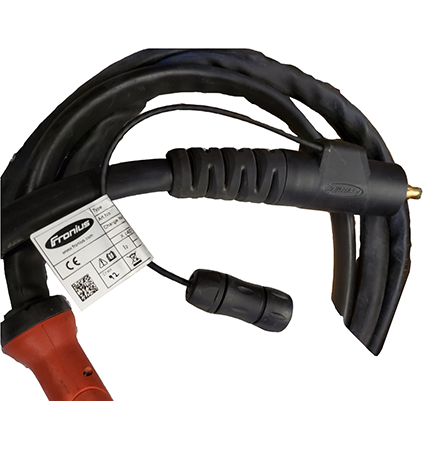

Fronius Multilock Torch Handle THP 220i Gas Cooled /F/UD/13.12ft/LED

SKU: 4,051,305

THP 220i G ML/F/UD/13.12ft/LED/LED

• Fronius Multilock Torch Handle THP 220i Gas Cooled 12ft with LED Light
• Whip Length 13.2 feet with LED light for Illumination of the weld area before and after welding
• Finger Up Finger Down Heat Control

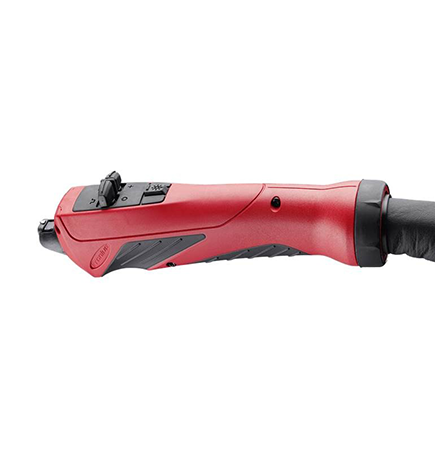

The Multilock hosepacks for the new generation of TIG welding torches were designed to take as much strain out of your work as possible. They feature an ergonomic design and a handle with soft, non-slip components. The torch body can be rotated 360° thanks to the ball joint—this helps when access is restricted and allows for more flexible handling. The control unit can be replaced in just a few steps thanks to the modular construction. You can choose from Up-Down, JobMaster or potentiometer control variants. Thanks to the patented interface, the hosepack can be equipped with different torch bodies depending on the application.

DUTY CYCLE:

DC CURRENT

• 220A 35 % D.C.
• 170A 60 % D.C.
• 130A 100 % D.C.

AC CURRENT

• 180A 35 % D.C.
• 130A 60 % D.C.
• 100A 100 % D.C.

HEAT AND TORCH CONTROL FUNCTION:

• The Up/Down torch has the following functions:
• Change the welding power using the up/down key (+/-)
• Illumination of the welding area via LED: Press button once
• LED lights up for 5 seconds Hold button down
• LED lights up continuously
• Cap-shaping in connection with the TIG AC welding process
• Intermediate lowering in connection with 4-step operating mode (I1 > I2)
