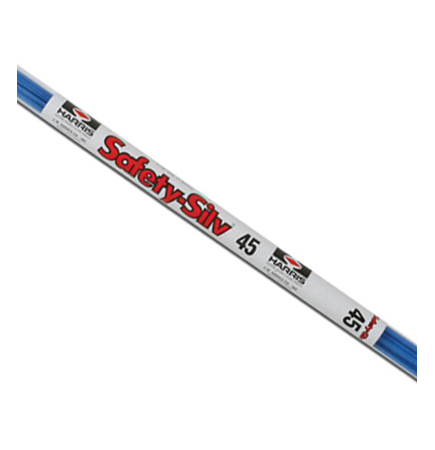

SAFETY-SILV® 45FC High Silver Brazing Alloy 3/32 in, 1 lb Tube

45F518L

AWS BAg-5

45% Silver Brazing Rod 1/8" Diamter x 18" Long 1 lb tube

Description: General Purpose Flux-coated Silver Brazing Alloy

Excellent general-purpose, flux-coated brazing alloy. Good ductilitiy and capillary flow.

Details:

Safety-Silv® 45 flux-coated high silver brazing alloy 3/32 x 18 in. x (2) 1 lb. bags/tube

Features:

• General purpose, cadmium-free silver brazing alloy
• Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145°F (63°C)
• Good ductility and capillary flow
• Fillet forming qualities are suitable for filling loose connections
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Popular choice to braze copper, brass, steel and stainless steel
• Fluidity rating of 6.5
• Flux-coating eliminates the need for manual flux application
• Conforms to EU RoHS directive

Specifications:

• Country of Origin: United States
• Warranty Length: 1 Year
• Approval: ANSI
• Additional Standards: Rohs
• Product Ship From City: Mason; Cleveland
• Product Ship From State Country: OH; OH
• Product Ship From Zip Code: 45040; 44117
• Special Order: No
• Alloy Type: HighSilver
• NSF Compliant: No
• RoHS Compliant: No
