SAFETY-SILV 45 1/8 X 18 X 15 TOZ Tube
Based on unit price: $51.79
- Description
- Technical specifications
- Spec. Sheets

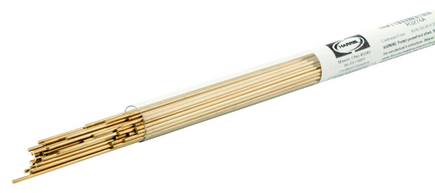

45618L Harris Safety Silv45 Brazing Alloy SF45 1/8 x 18 inch Rod 15 Troy Oz. (1lb) Tube
AWS A5.8 BAg-5
General purpose filler for steel and copper alloys. Melting range useful for wide clearances.
Excellent general purpose nontoxic brazing alloy. Good ductility and capillary flow. Color is silver to light yellow matches polished brass.
Safety-Silv® alloys are strongly recommended as replacements for all cadmium-bearing brazing filler metals
Details:
Safety-Silv® 45 is an excellent general-purpose high silver brazing filler metal. Used for decades, this filler metal is a popular choice for brazing copper, brass, steel, and stainless steel. A cadmium-free alloy with a melting range of approximately 145°F, Safety-Silv 45 provides good fillet forming qualities and is suitable for filling loose connections. This filler metal has excellent joint strength and ductility at a moderately higher temperature. Preferred base metal clearance range is 0.003 – 0.006”. Color is silver to light yellow. Conforms to the EU Reach & RoHS directive.
Features:
- General purpose cadmium-free silver brazing alloy
- Excellent joint strength and ductility at moderately higher temperature with a melting range of approximately 145°F
- Good ductility and capillary flow
- Fillet forming qualities are suitable for filling loose connections
- Preferred base metal clearance range is 0003"-0006"
- Popular choice to braze copper, brass, steel and stainless steel
Specifications:
- Country of Origin: US
- Brazing Temperature Range: 1370°F-1550°F (743°C-843°C)
- Chemical Composition: Silver 44-46%;Copper 29-31%;Zinc 23-27%;Others (Total) 0.15%
- Classification: ANSI/AWS A5.8 ASME SFA 5.8;QQ-B-654A Class BAg-5;ISO 17672 Ag 245;QQ-B-654a BAg-5
- Color: Silver to light yellow
- Density: 4.79 t.o./cu.in.
- Diameter: 1/8" (3.18mm)
- Electrical Conductivity (%IACS): 18.9
- Fluidity Rating: 6.5
- Length: 18" (457.2mm)
- Liquidus: 1370°F (743°C)
- Made in USA: Yes
- Material: High silver alloy
- NSF Compliant: No
- Recommended Flux: Stay-Silv white flux is suitable for many applications. Stay-Silv black brazing flux is often used when brazing stainless steel or where heating cycles are prolonged or focused as in induction brazing. Harris Eco Smart boric acid free flux (powder or paste) is an excellent choice to promote sound brazed assemblies.
- RoHS Compliant: Yes
- Size: 15 troy oz.
- Solidus: 1225°F (663°C)
- Warranty: 1 Year
