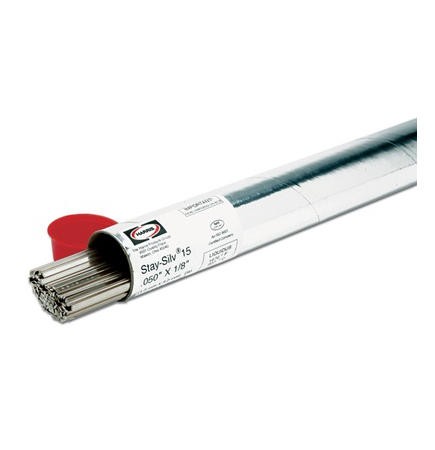

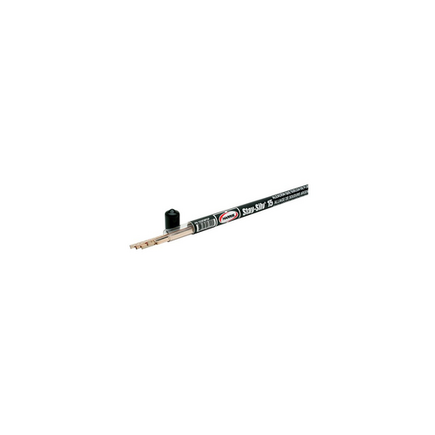

STAY-SILV® 15 Phos-Copper Brazing Alloy 0.050 x 1/8 in, 4 Tubes/Box

ATTENTION: Product prices are subject to daily change. Orders exceeding what LOCK8 currently has in stock may result in a price adjustment. Pricing for additional units will be provided upon request.

1520FMPOP 15% BRAZING ALLOY FLAT SHAPE

Description: PhosCopper Brazing Alloy

 AWS A5.8 BCuP-5

QUANTITY 7 STICKS PER TUBE

Designed primarily for copper to copper brazing application, it may also be used in brazing brass with the use of Stay-Silv® brazing flux.

For many years the standard of the industry, the 15% silver alloy has proven its value. This filler metal is excellent for situations in which close fit-up does not exist, and where thermal expansion and service vibration are involved.

Details:

Stay-Silv® 15 phos-copper brazing alloy 0.050 x 1/8 x 20 in. 1 ea. mini-pak 7-stick tube POP

Features:

• Popular choice for copper brazing air conditioning and refrigeration connections
• Flows into tight connections when heated above its liquidus temperature
• Wide melting range allows operators to fill loose connections and "cap" or "build-up" around the finished joint. When heated above its liquidus it will penetrate tight connections.
• Popular brazing filler metal for HVAC and refrigeration connections
• Recommended joint clearance of 0.003 in. - 0.006 in. (0.08 mm - 0.15 mm)
• Flux not required for copper brazing as it is self-fluxing. For brazing brass or copper-to-brass Stay-Silv® white flux is suitable for most applications. Harris Eco Smart® boric acid free flux, powder or paste, is an excellent choice to promote sound brazed assemblies
• Corrosion resistance is generally similar to the copper base metal, but phosphorus containing alloys, including Stay-Silv® 15, should not be used if the braze is exposed to sulfur or sulfur compounds in service
• Not recommended for brazing steel or other ferrous metals due to sufficient lack of joint ductility
• Suitable for brazing low nickel (10% maximum) copper/nickel base metals
• Complies with the EU Reach & RoHS directive

Specifications:

• Country of Origin: United States
• Warranty Length: 1 Year
• Approval: ANSI
• Additional Standards: Rohs; Reach
• Product Ship From City: Mason; Cleveland
• Product Ship From State Country: OH; OH
• Product Ship From Zip Code: 45040; 44117
• Special Order: No
• Alloy Type: PhosCopper
• NSF Compliant: No
• RoHS Compliant: Yes
