Heck Plate Beveler Model 9000 1-1/4" Bevel 120 Volt

9000

Heck Plate Beveler Model 9000 1-1/4" Bevel 120 Volt

• Maximum 1-1/4″ Bevel
• Adjustable Angle from 15-45°
• Worlds most powerful plate beveler
• Faster feed rates
• Comfortable cushioned handles
• Powerful 1-1/2 HP 110v motor

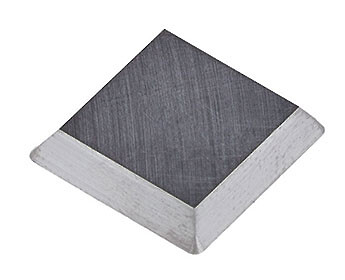

• Uses 10 indexable 5/8″ square carbide inserts
• Made in The USA

The most effective method of beveling!

Heck Industries have been creating edge conditioning solutions since 1966 and our Bevel-Mill® Hand Held Bevelers are a proven tool for creating bevels and chamfers on all types of machinable materials such as mild steel, aluminum, and stainless steel.

• Eliminates slow grinding
• No Fumes – Heat – Smoke
• No Vibration

Our Bevel-Mill® are ideal for weld preparation, creating a uniform bevel at your desired angle from 15-45°.

These bevelers use milling type cutter heads with square carbide inserts specially designed for long life and are indexable for extended use.

Additional benefits to using Heck Industries bevelers include:

• Self supporting on the work piece to eliminate operator fatigue
• Works plate and structural steel as thin as 3/16” for clean burr free edges
• Adjustable depth of cut
• Can be inverted to work the lower edge of plates
• Specially designed American Made motors provide efficient long lasting power
• V-block design assures consistent edge quality
• Using standard V-block roller guides provided, rounds and pipe can be worked.
• Using optional cutter head, radius edges can be made also. Radius edge rounding is perfect for cleaning up box corner welds or to prevent paint chipping on structural steel.
