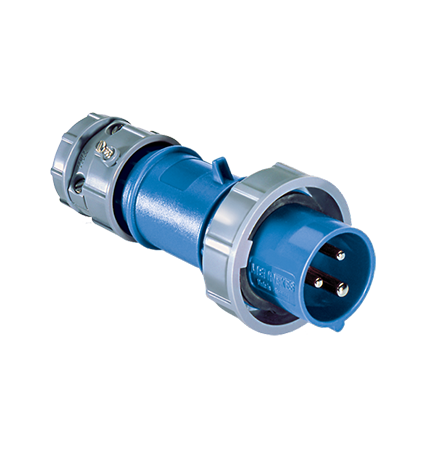

IEC Plug 250 Volt Pin & Sleeve 1 Phase 20 Amp 2 Pole 3 Wire
Based on unit price: $147.55
- Description
- Spec. Sheets
320P6W 250 VOLT PLUG SINGLE PHASE PLUS GROUND
2 POLE 3 WIRE PIN & SLEEVE PLUG WATER TIGHT
MENNEKES pin and sleeve plugs provide clean and secure connections for a wide variety of equipment. These 60309-compliant in-line plugs offer several features to stand up to rigorous industrial environments, including non-metallic housings with locking rings and gaskets for UL Type 4X watertight protection, nickel-plated pins to protect against corrosion and heat-resistant materials to enhance safety. An external strain relief system offers captive stainless hardware, and female-threaded NPT housings let users directly install flex conduit or wire mesh strain-relief fittings without an adapter.
| Catalog # |
ME 320P6W |
| Type of Device | Watertight Plug |
| Product Series | 60309 Pin and Sleeve |
| Amperage | 20A |
| Voltage | 1 Phase 250VAC |
| # of Poles | 2 |
| # of Wires | 3 |
| Color | Blue |
| Standard HP Rating | 2 |
| Female Grounding Contact Position | 6h |
| Protective Cap | ME 320CAP |
| Replacement Ring | ME 320RR |
| Pin Material | Nickel Plated Brass |
| NEMA Rating | 4X |
| IP Rating | 67 |
| Compliance |
cULus to UL 1682 and UL 1686 to |
| Current Interrupting | Certified at full-rated current and voltage |
| Temperature Rise |
Max 30°C rise at full rated current after 50 overload cycles |
| Maximum Working Voltage | 600 RMS |
| Dielectric Voltage | 3000VAC maximum |
| UV Endurance | UV Stabilized Material |
| UL Endurance Testing-Electrical (at .75-.8 Power Factor) | 5000 mated cycles at full-rated current/voltage |
| Environmental Operating Temperature |
Maximum continuous: 70°C; |
| Crush Resistance | Units conditioned to -25°C for 6 hours and 250 lbs. of force applied for 1 minute |
| Impact Resistance | Units conditioned to -25°C for 6 hours and dropped 8 times from 30'' |
