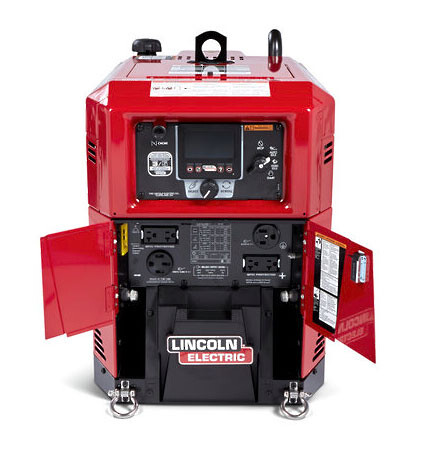

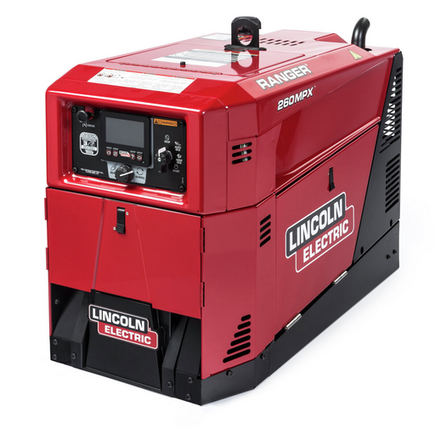

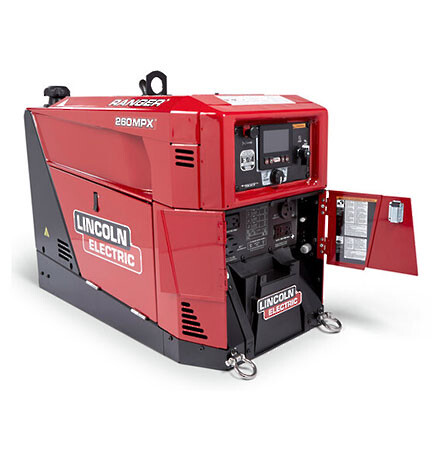

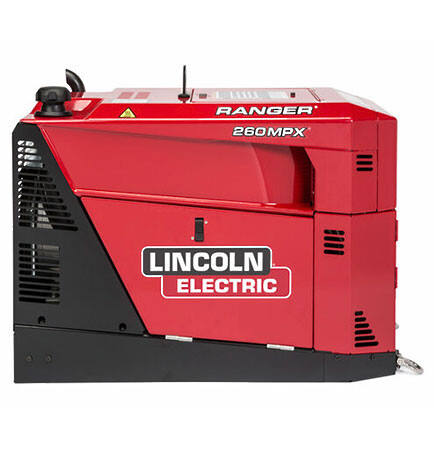

Ranger® 260MPX™ Engine Driven Welder (Kohler®)

Details:

DO MORE WITH LESS. The Ranger® 260MPX™ engine driven welder/generator excels on the job. The unit’s industry-leading design makes it smaller, lighter and quieter than other machines in its class, while an intuitive user interface with advanced technology helps simplify operation and improve arc control. You can also count on a reliable source of clean generator power to run a variety of tools and sensitive equipment.

Features:

• Industry-Leading Design - The Ranger 260MPX welder/generator is smaller and quieter compared to other machines in its class. Up to 20% smaller meaning more space for additional tools. Up to 25% lighter for easy maneuverability around the jobsite. And, up to 60% quieter for reduced noise level helps enhance safety and comfort.
• Innovative User-Interface + Advanced Technology - Easy-to-read digital screen with simple push-and-turn controls. Ready.Set.Weld® technology simplifies setup with recommended settings. The Chopper Technology® feature helps improve arc control CrossLinc® remote technology allows for arc adjustments at the weld. Maintenance alerts keep you informed when service is needed.
• Clean Generator Power - 9.5kW of clean AC generator power accommodates a variety of tools and equipment. Operate sensitive electronics, like laptops, without concern - this unit delivers clean generator power with 5% Total Harmonic Distortion. Run generator power and weld at the same time, without interruption.
• Clean AC Generator Power

Whats Included:

• (1) Ranger 260MPX Engine Driven Welder

Specifications:

• Country of Origin: United States
• Warranty Length: 3 Years Parts and Labor, Engine warranted separately through engine manufacturer
• Welding Technology: Inverter/Chopper
• Input Voltage Type: Engine
• Output Polarity: DC
• Output Mode: CC; CV; CC/CV
• Max Output: 200-299
• Input Icon: G
• Output Icon: DC; CC/CV
• Equipment Technologies: CrossLinc; Digital UI; Direct-Connect Spool Gun
• Engine Brand Model: Kohler®
• Engine Type: Carburetor
• Fuel Type: Gas
• Cooling: Air
• Height: 26 in
• Product Height (mm): 660
• Width: 20 in
• Product Width (mm): 508
• Length: 36 in
• Product Length (mm): 914
• Weight: 446 lb
• Product Weight (kg): 202
• Machines Processes: Stick (SMAW); TIG (GTAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Ingress Protection Rating: IP23
• IEC Rating: 231A / 29.2V / 100% @ 104°F (40°C)
• Max Rating: 260A / 26V / 100% @ 104°F (40°C)
• Temperature Rating at Rated Output (deg C): 40
• Arclink Connector: No
• Tap or Continuous Control: Continuous
• Single Phase Auxiliary Output: 9,500 Watts Continuous, 120/240V
• Auxiliary Output Frequency: 60 Hz

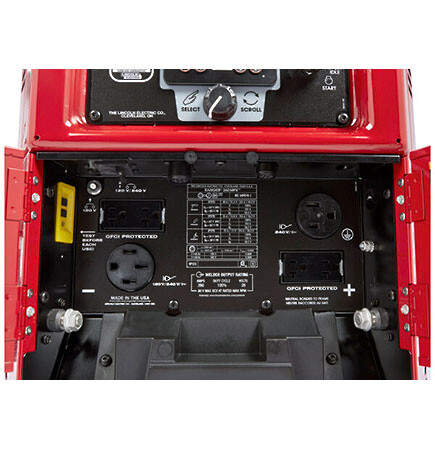

• Receptacle Types: NEMA 5-20R; NEMA 6-50R; NEMA 14-50R
• Engine Brand & Model: Kohler OHV Command CH730
• Engine Description: 2 Cylinder Air-Cooled Gasoline Engine
• Engine Horsepower: 23.5 HP
• High Idle Operating Speed @ Rated Output: 3600
• Fuel Tank Size (gal): 11
• Fuel Tank Size (L): 41.6
• Oil Capacity (qts.): 2.0
• Oil Capacity (L): 1.9
• Auxiliary Output Type (Phase): 1
• Auxiliary Output Voltage: 120; 240
• Multifunctional Equipment: Welder; Generator
• Welding Controls: Chopper
• Remote Control Options: CrossLinc; Wired
• User Interface Type: Display Screen
• Output Meters: Digital
• # of Control Knobs: Single Knob
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Spool Gun
• VRD: No
• Engine Cylinders: 2
• Engine Controller: Mechnical
• Engine Cooling: Air
• Spark Arrestor: Optional
• Fuel Consumption (High Idle): 0.8 gallons / hour 3.1 liters / hour
• Fuel Consumption (Low Idle): 0.6 gallons / hour 2.1 liters / hour
• Case Type: Painted
• Jumper Terminals: No
