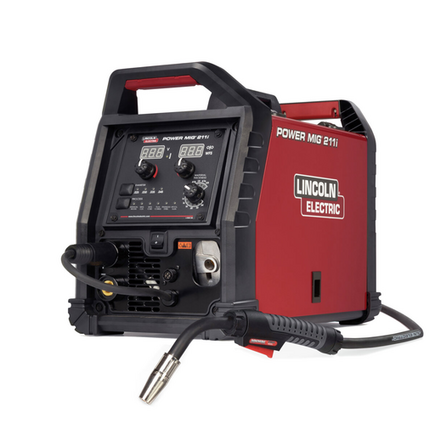

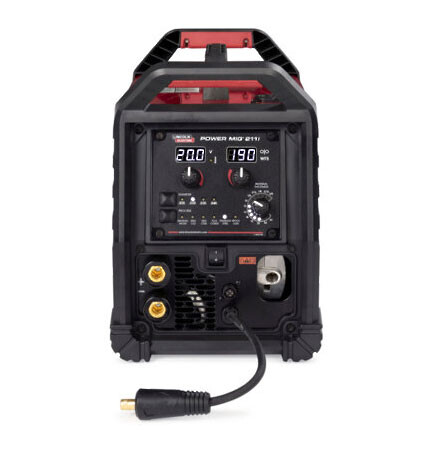

POWER MIG® 211i MIG Welder

Details:

SOLID, DEPENDABLE WELDING. The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’ s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly - and when it’ s time to move, the sleek case with multiple lift points make it extremely portable. If you’ re looking for an incredibly simple, reliable MIG welder that won’ t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

Features:

• Simple user interface - Seven segment display with basic knob controls.
• Process Capabilities - MIG, Flux-Cored and Spool Gun.
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
• Lightweight and Portable - Only 41 lbs

Whats Included:

• Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1), 230V to 120V power cord adapter, Work Cable and Clamp, Adjustable Gas Regulator and Hose, Gas Nozzle, Gun Cable Liner (pre-installed in gun), Spindle Adapter, Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631), 0.030-0.035in. (0.8 - 0.9 mm) Drive Roll (Installed), 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, and 0.025 - 0.035 in. (0.6 - 0.9 mm) Wire Guide (Installed)

Specifications:

• Country of Origin: Mexico
• Warranty Length: 3 Years
• Welding Technology: Inverter/Chopper
• Input Phase: 1Ph
• Input Voltage Type: Multiple
• Input Hertz: 60
• Output Polarity: DC
• Output Mode: CV
• Max Output: 200-299
• Input Icon: 1 Phase; 60 Hz
• Output Icon: DC; CV; 2-roll
• Equipment Technologies: Analog Communication
• Cooling: Air
• Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 120/1/60
• Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): MIG95A/18.8/60%75A/17.8V/100%
• Phase 1: Input Current at Max Rated Output #1 (Current): 20A
• Phase 1: Input Voltage #2 (Voltage/Phase/Hertz): 230/1/60
• Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle): MIG175A/22.8V/30%90A/18.6V/100%
• Phase 1: Input Current at MAX Rated Output #2 (Current): 22.5A
• Height: 15.5 in
• Product Height (mm): 394
• Width: 10.75 in
• Product Width (mm): 273
• Length: 22 in
• Product Length (mm): 558
• Weight: 41 lb
• Product Weight (kg): 18.6
• IEC Rating: IP21S
• Max Rating: 211A
• Number of Operators per Machine: 1
• Machines Communication Technology: analog
• Work Lead Connector Type: Dinse
• Work Cable Length: 10 FT
• Spool Gun Compatible (Duty): Light
• Arclink Connector: No
• Tap or Continuous Control: Continuous
• Work Clamp Included: Yes
• UI Type: Meters
• Wire Feeders Processes: MIG; Flux Cored
• Contact Tips Included: Yes
• Sample MIG Wire Included: Yes
• Input Voltage: 120/230
• Input Current: 120V: 15A, 230V: 15A
• Input Phase: 1
• Input Power: 120/230/1/60
• Mode Icon: CV
• Output Range: 120V: 20-140A DC 230V: 20-211A DC Max. OCV : 76V
• Polarity: DC
• Rated Output: 120V: 95A/18.8/60% 230V: 175A/22.8V/30%
