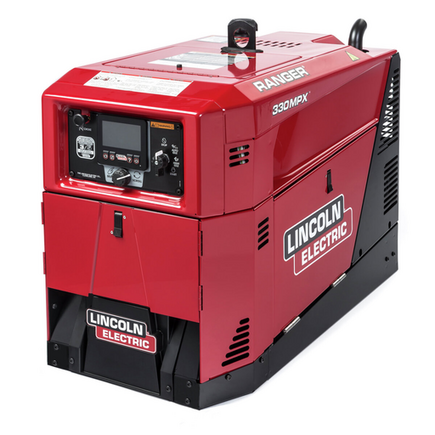

Ranger® 330MPX™ Engine Driven Welder (Kohler®)

Maximize your welding efficiency with the Ranger® 330MPX™ Engine Driven Welder, powered by a high-performance Kohler® engine. Designed for tough jobsite conditions, this welder delivers reliable, versatile power for both welding and auxiliary needs. With advanced features such as MPX technology, the Ranger® 330MPX™ ensures consistent and smooth arc performance, while its durable construction is built to withstand demanding environments. Ideal for construction, maintenance, and industrial applications, this welder offers both power and portability for professionals who need dependable performance on the go.

Details:

The Ranger® 330MPX™ welder and generator leads the way for the construction, maintenance, and service truck industries. The modern design and advanced features allow this machine to streamline welding operations and improve efficiency at the job site. The Ranger 330MPX has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class. It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site. The Ranger 330MPX’s digital user interface offers a suite of advanced technology that improves weld performance and productivity. Enhanced remote control capabilities offer operators the ability to select their preferred remote amperage scale along with fine tune adjustments available on hot start, arc force, and pinch controls. The Ranger 330MPX is up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace.

Features:

• Ready.Set.Weld® - Intuitive push-and-turn digital controls make setup a breeze.
• Chopper Technology® - Provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance.
• ArcFX™ Technology - Provides instant graphical feedback on how settings affect the weld outcome.
• CrossLinc™ Remote Technology - Communicates voltage control to the welding power source through one common weld cable.
• Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption.
• Plenty of power at 330A/28V for 100% duty cycle to weld 1/4 in. 7018 electrode. Arc gouging capabilities up to 3/16 in. carbon electrode.
• The maintenance screens allows the machine to record engine hours for proper service and maintenance.
• Enable the supervisor and operator passcode protection to lock settings and weld modes.
• Engine Driven Weld Modes: downhill pipe, touch-start pulse TIG, and pulse spool gun.

Whats Included:

• (1) Ranger 330MPX Engine Driven Welder

Specifications:

• Country of Origin: United States
• Warranty Length: 3 Years Parts and Labor, Engine warranted separately through engine manufacturer
• Welding Technology: Inverter/Chopper
• Input Voltage Type: Engine
• Output Polarity: DC
• Output Mode: CC; CV; CC/CV
• Max Output: 300-399
• Input Icon: G
• Output Icon: DC; CC/CV
• Equipment Technologies: CrossLinc; Digital UI; Direct-Connect Spool Gun
• Engine Brand Model: Kohler®
• Engine Type: Carburetor
• Fuel Type: Gas
• Cooling: Air
• Height: 26 in
• Product Height (mm): 660
• Width: 20 in
• Product Width (mm): 508
• Length: 36 in
• Product Length (mm): 914
• Weight: 446 lb
• Product Weight (kg): 202
• Machines Processes: Stick (SMAW); Gouging (CAC-A); TIG (GTAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Ingress Protection Rating: IP23
• IEC Rating: 292A/31.7V/100% @ 104°F (40°C)
• Max Rating: 330A/28V/100% @ 104°F (40°C)
• Rated Gouging Carbon Diameter: 3/16 in (5.0 mm)
• IEC Amperage Class: 300
• Temperature Rating at Rated Output (deg C): 40
• Arclink Connector: No
• Tap or Continuous Control: Continuous
• Work Clamp Included: No
• Single Phase Auxiliary Output: 10,000 Watts Continuous, 120/240V
• Auxiliary Output Frequency: 60 Hz
• Receptacle Types: NEMA 5-20R; NEMA 6-50R; NEMA 14-50R
• Engine Brand & Model: Kohler OHV Command CH740
• Engine Description: 2 Cylinder Air-Cooled Gasoline Engine
• Engine Horsepower: 25 HP
• High Idle Operating Speed @ Rated Output: 3600
• Fuel Tank Size (gal): 11
• Fuel Tank Size (L): 41.6
• Oil Capacity (qts.): 2.0
• Oil Capacity (L): 1.9
• Auxiliary Output Type (Phase): 1
• Auxiliary Output Voltage: 120; 240
• Multifunctional Equipment: Welder; Generator
• Welding Controls: Chopper
• Remote Control Options: CrossLinc; Wired
• User Interface Type: Display Screen
• Output Meters: Digital
• # of Control Knobs: Single Knob
• Weld Modes: Downhill Pipe; Touch Start TIG; CC-Stick; CV-Wire; Arc Gouging; Spool Gun
• VRD: No
• Engine Cylinders: 2
• Engine Controller: Mechnical
• Engine Cooling: Air
• Spark Arrestor: Optional
• Fuel Consumption (High Idle): 0.8 gallons / hour3.1 liters / hour
• Fuel Consumption (Low Idle): 0.6 gallons / hour2.1 liters / hour
• Case Type: Painted
• Jumper Terminals: No
