MAGMA E7018-1H4R Electrode 1/4" 6.0mm x 450mm 2.5kg slv (15kg case)
Based on unit price: $8.42
- Description
- Spec. Sheets
SKU: 11206XJEMK

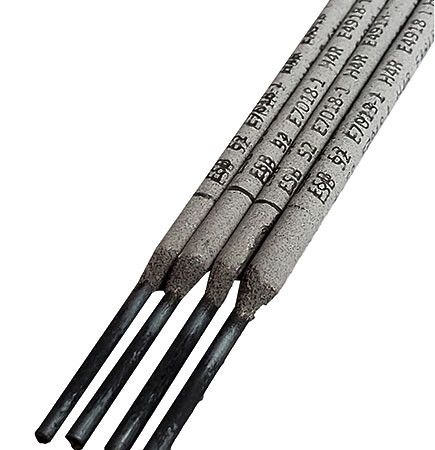

MAGMA E7018-1 H4R Electrode (1/4" x 18") 6.0mm x 450mm
2.5kg slv (10kg case) AMPERAGE: 260-340 amps DC
Approx. 16 pcs per Box.

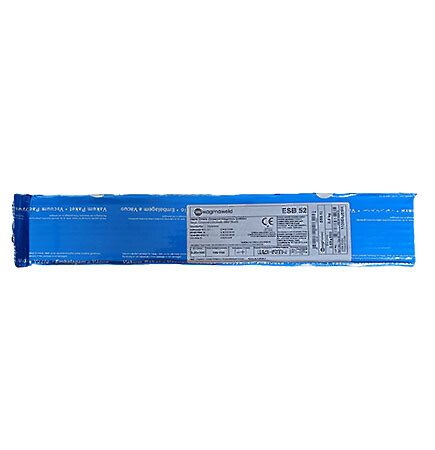

INDIVIDUAL SLEEVES VACUUM PACKED FOR 100% HERMETICALLY SEALED

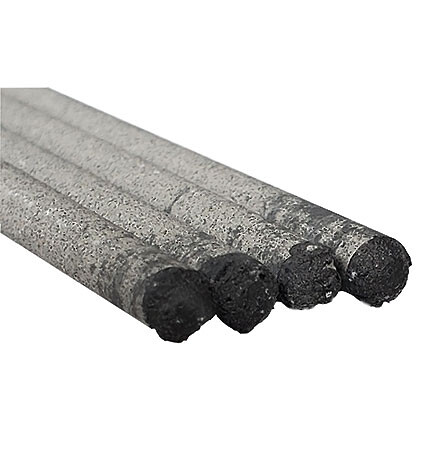

Very Easy electrode when starting the arc or doing a re-start. The end of the electrode is coated.
Designation of H4R (low hydrogen) allows for extended periods of use when taken out of the rod oven.
Suitable for welding of steel constructions, bridge, dam, thermal power plants, petrochemical insdustry, shipbuilding, high strength pipe-lines, pressure vessels, tanks, which are dynamically loaded and require high mechanical properties. The weld metal has a very low hydrogen content and is resistant to ageing. Produces tough and crack-free welded joints, also suited for welding steels having a carbon content of up to 0.6 % and joining of rails. Good operating characteristic, also in root pass and positional welding. Very good gap bridging properties. Welds are of X-ray quality.
STANDARDS:
- AWS/ASME SFA - 5.1 E7018-1 H4R
- CSA W48-18 E4918-1-H4
- EN ISO 2560 -A E 42 5 B 42 HS
- TS EN ISO 2560 -A E 42 5 B 42 HS
APPROVALS:
STORAGE AND RE-DRYING INSTRUCTIONS:
- It can be dried to a Maximum of 5 Times
- It has to be dried at 350°C for 2 Hours
