Magnetic Flange Bolt Hole Aligners Mini Size 5/16
Price: $90.26 (package of 1)
Based on unit price: $90.26
Based on unit price: $90.26
✔
Brand:
Flange Wizard
SKU #: 42050-MM
- Description
- Technical specifications
- Replacements parts & accesories
- Videos
SKU: 42050-MM

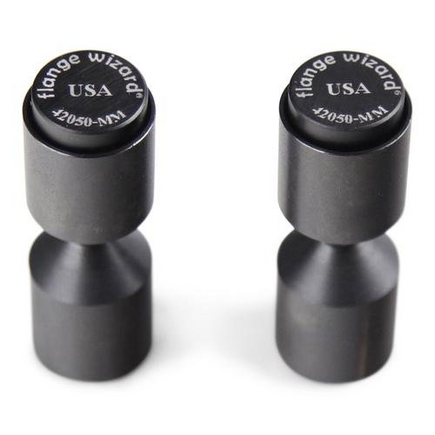

Magnetic Flange Bolt Hole Aligners Mini Size 5/16" to 7/8"
The Magnetic Mini Pins will self-align on holes from 5/16″ to 7/8″ diameter and will work on flanges from 7/16″ to 7/8″ thick.
FITS THE FOLLOWING:
- CLASS 150 LB FLANGE - 1/2" TO 6" Pipe Maximum 7/8" Holes 7/16" to 7/8" Thick
- CLASS 300 LB FLANGE - 1/2" TO 2" Pipe Maximum 7/8" Holes 7/16" to 7/8" Thick
- CLASS 600 LB FLANGE - 1/2" TO 1-1/2" Pipe Maximum 7/8" Holes 7/16" to 7/8" Thick
FITS CLASS 150 LB FLANGE
Pipe Size 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 3-1/2, 4, 5
FITS CLASS 600 LB FLANGE
1/2, 3/4, 1, 1-1/4, 1-1/2
FITS CLASS 300 LB FLANGE
1/2, 3/4, 1, 1-1/4, 1-1/2, 2
Replacement Parts & Accessories (Click to Expand)

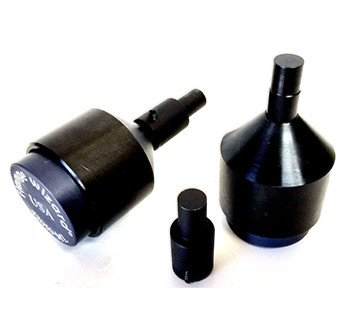

42050-MM 2 Hole Magnetic Pin Parts (includes all individual items)
$71.94
