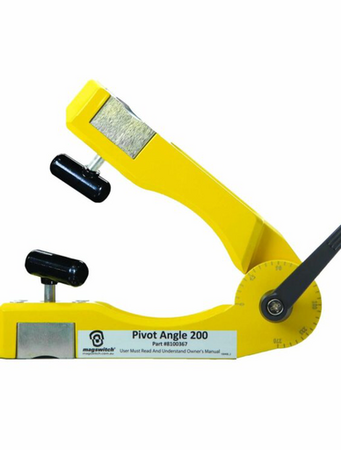

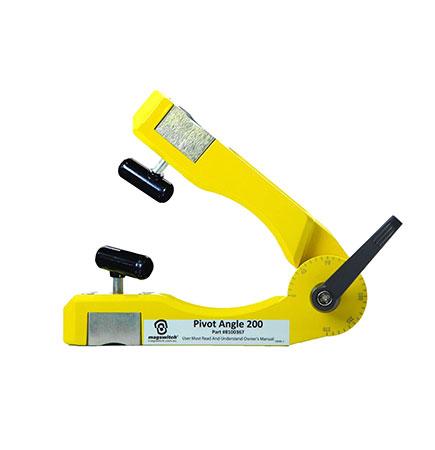

Magswitch Pivot Angle 200

SKU: 8100367

Magswitch Pivot Angle 200

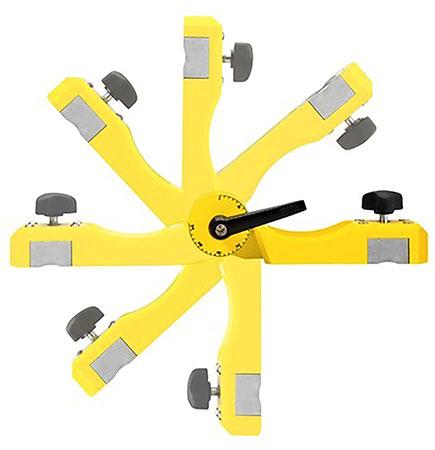

• Magswitch pivoting magnetic welding angle offers a range of angles from 28 degrees to 270 degrees.
• Switch on and off 215 pounds of magnetic holding force by rotating the black knobs.
• Two sides of the tool magnetize when turned on and can be secured to a table or wall to hold a fixture in place.
• Perfect for repetitive work on uncommon angles
• Each arm features a Magswitch with a 200 lb (90kg) hold capacity.

FEATURES:

• Magnetic field turns completely on and off mechanically.
• Does not use an electrical power source.
• Magnets stay clean.
• Holds flat and round surfaces of steel.
• Single lock at the elbow to secure your angle.
• Dial on elbow has indicators every 5 degrees.
• Rapid adjustments for odd angles.

SPECIFICATIONS:

• Max Breakway: 215 lbs / 97.5 kg on 3/16 in steel plate thickness
• 2:1 Shear Working Load: 48 lbs / 21.7 kg
• Full Saturation Thickness: 3/16 in / 4.7 mm
• Product Weight: 1.8 lbs / 0.8 kg
• Dimensions: 9.1 x 3.9 x 6.4 in / 231.1 x 99 x 162.5 mm
• Magnetic Pole Footprint: 41.25 mm x 56 mm
