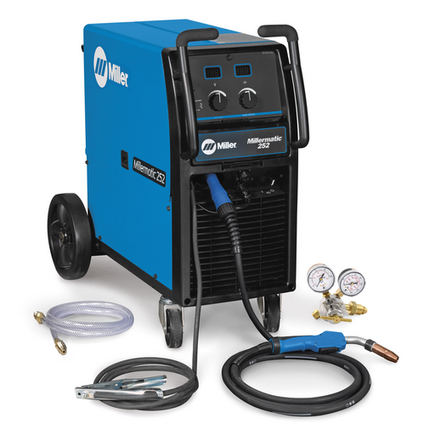

Millermatic® 252 MIG Welder - 200(208)/230V

Details:

A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.

Features:

• Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
• Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.
• Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.
• Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
• Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.
• Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.

Specifications:

• Country of Origin: United States
• Length: 40
• Width: 19
• Height: 30
• Weight: 205
• Max Open Circuit Voltage (VDC): 38
• Rated Output: 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle
• Spool Size: 12 in (305 mm)
• Weld Output: CV
• Material Type: Solid Steel|Stainless|Flux Cored
• Amperage Min (A): 30
• Amperage Max (A): 300
• Amperage Range: 30 A - 300 A
• Min Thickness - ga - Mild Steel (ga): 22
• Min Wire Feed Speed - IPM (IPM): 50
• Min Wire Diameter - in - Solid Steel (in): 0.023
• Input Phase - To Be Deleted: 1Phase
• Input Phase: 1-Phase
• Max Wire Diameter - in - Solid Steel (in): 0.045
• Display Min Thickness - Mild Steel: 22 ga. (0.9 mm)
• Display Max Thickness - Mild Steel: 1/2 in. (13 mm)
• Max Wire Feed Speed - IPM (IPM): 700
• Min Thickness - mm - Mild Steel (mm): 0.9
• Input Voltage: 208 V|220/230/240 V
• Min Thickness - ga - Aluminum (ga): 14
• Min Thickness - mm - Aluminum (mm): 1.9
• Max Thickness - in - Mild Steel (in): 0.5
• Max Thickness - mm - Mild Steel (mm): 13
• Max Thickness - in - Aluminum (in): 0.38
• Max Thickness - mm - Aluminum (mm): 9.5
• Max Wire Feed Speed - m/min (m/min): 17.8
• Min Wire Feed Speed - m/min (m/min): 1.3
• Display Max Thickness - Aluminum: 3/8 in. (9.5 mm)
• Display Min Thickness - Aluminum: 14 ga. (1.9 mm)
• Max Wire Diameter - in - Stainless (in): 0.045
• Max Wire Diameter - in - Flux Cored (in): 0.045
• Max Wire Diameter - mm - Solid Steel (mm): 1.2
• Max Wire Diameter - mm - Stainless (mm): 1.2
• Max Wire Diameter - mm - Flux Cored (mm): 1.2
• Min Wire Diameter - in - Stainless (in): 0.023
• Min Wire Diameter - in - Flux Cored (in): 0.03
• Min Wire Diameter - mm - Solid Steel (mm): 0.6
• Min Wire Diameter - mm - Stainless (mm): 0.6
• Min Wire Diameter - mm - Flux Cored (mm): 0.8
• Current Type: DC
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Input Hz: 60 Hz
• Material Thickness Display: Aluminum 14 ga. (1.9 mm) - 3/8 in. (9.5 mm)|Mild Steel 22 ga. (0.6 mm) - 1/2 in. (12.7 mm)
• Wire Diameter Display: Stainless 0.023 in. - 0.045 in.|Stainless 0.6 mm. - 1.2 mm.|Solid Steel 0.6 mm. - 1.2 mm.|Solid Steel 0.023 in. - 0.045 in.|Flux Cored 0.03 in. - 0.045 in.|Flux Cored 0.8 mm. - 1.2 mm.
• Wire Feed Speed Display: 1.3 m/min - 17.8 m/min| 50 IPM - 700 IPM
