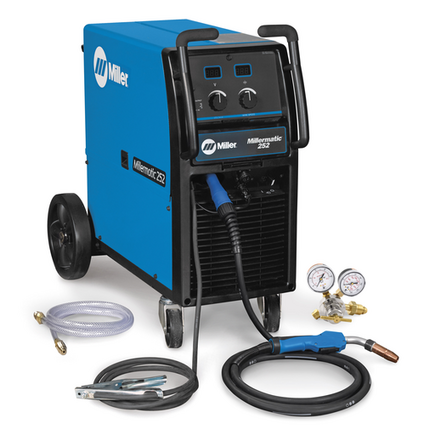

Millermatic® 252 MIG Welder - 200(208)/230V

Details:

A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.

Features:

• Large, Digital Front Panel with Built-in Digital Timers Menu: Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
• Auto Gun Detect™: Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.
• Push-Pull Gun Direct Connect: Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.
• Angled, Dual-Gear Driven, Cast Aluminum Drive System: Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
• EZ-Change™ Low Cylinder Rack: Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.
• EZ-Access™ Consumable Compartment and Parameter Chart: Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.

Specifications:

• Max Open Circuit Voltage: 38 VDC
• Rated Output: 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle
• Series: Millermatic®
• Spool Size: 12 in (305 mm)
• Weld Output: CV
• Material Type: Solid Steel;Stainless;Flux Cored
• Amperage Min: 30 A
• Amperage Max: 300 A
• Amperage Range: 30 A - 300 A
• Input Phase: 1-Phase
• Display Min Thickness - Mild Steel: 22 ga. (0.9 mm)
• Display Max Thickness - Mild Steel: 1/2 in. (13 mm)
• Input Voltage: 208 V;220/230/240 V
• Max Wire Feed Speed: 17.8 mmin
• Min Wire Feed Speed: 1.3 mmin
• Display Max Thickness - Aluminum: 3/8 in. (9.5 mm)
• Display Min Thickness - Aluminum: 14 ga. (1.9 mm)
• Current Type: DC
• Weldable Metals: Aluminum;Stainless Steel;Steel
• Input Hz: 60 Hz
• Material Thickness Display: Aluminum 14 ga. (1.9 mm) - 3/8 in. (9.5 mm);Mild Steel 22 ga. (0.6 mm) - 1/2 in. (12.7 mm)
• Wire Diameter Display: Stainless 0.023 in. - 0.045 in.;Stainless 0.6 mm. - 1.2 mm.;Solid Steel 0.6 mm. - 1.2 mm.;Solid Steel 0.023 in. - 0.045 in.;Flux Cored 0.03 in. - 0.045 in.;Flux Cored 0.8 mm. - 1.2 mm.
• Wire Feed Speed Display: 1.3 m/min - 17.8 m/min; 50 IPM - 700 IPM
• Height: 30 EA
• Length: 40 EA
• Weight: 205 EA
• Width: 19 EA
• Country of Origin: United States
