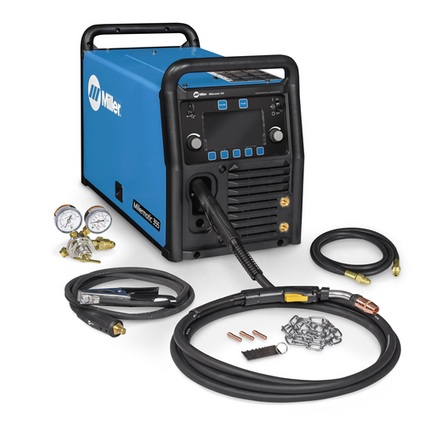

Millermatic 355 - MIG/Pulsed MIG Welder 208/240/460/575V

Details:

Easy to use machine to increase efficiency and productivity for manufacturing and fabrication users. 7" Color LCD screen featuring Auto-Set™ Elite, Electronic Parameter chart, and Trigger Program Select. This all-in-one welder connects to any North American input power. Welds up to 1/2” aluminum, stainless and mild steel.

Features:

• Easy-to-understand interface: 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Pulsed MIG welding delivers higher quality: Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
• Trigger Program Select: Increases productivity by eliminating the need to go back to the machine to change weld settings. Simply tap gun trigger to select the program.
• Versatility: Capabilities include MIG, pulsed MIG and flux-cored welding.
• Bernard BTB Gun 300 A MIG gun with AccuLock™ S consumables: AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
• Portability - Machine only weighs 99 lb: Weight is reduced by more than 40 percent compared to the Millermatic 350P.
• Optional EZ-Latch™ running gear: Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
• Generator Compatible: The Millermatic 355 will be able to operate and provide full output when powered by generators with 19000 Watt (19K) output or higher. Limited output will occur when used with smaller generators.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

Specifications:

• Max Open Circuit Voltage: 90 VDC
• Rated Output: 310 A at 29.5 V, 60% duty cycle
• Series: Millermatic®
• Spool Size: 12 in. (305 mm)
• Weld Output: CV
• Material Type: Aluminum;Solid Steel;Flux Cored;Metal-Core
• Amperage Min: 20 A
• Amperage Max: 400 A
• Amperage Range: 20 A - 400 A
• Input Phase: 1- and 3-Phase
• Display Min Thickness - Mild Steel: 22 ga. (0.6 mm)
• Display Max Thickness - Mild Steel: 1/2 in. (13mm)
• Input Voltage: 208 V;220/230/240 V;460 V;575 V
• Max Wire Feed Speed: 20 mmin
• Min Wire Feed Speed: 1.3 mmin
• Display Max Thickness - Aluminum: 1/2 in. (13 mm)
• Display Min Thickness - Aluminum: 18 ga. (1.2 mm)
• Current Type: DC
• Weldable Metals: Aluminum;Specialty Metals;Stainless Steel;Steel
• Material Thickness Display: Aluminum 18 ga. (1.2 mm) - 1/2 in. (12.7 mm);Mild Steel 22 ga. (0.6 mm) - 1/2 in. (12.7 mm)
• Wire Diameter Display: Aluminum 0.035 in. - 0.047 in.;Aluminum 0.9 mm. - 1.2 mm.;Metal-Core 1.2 mm. - 1.3 mm.;Metal-Core 0.045 in. - 0.052 in.;Stainless 0.023 in. - 0.045 in.;Stainless 0.6 mm. - 1.2 mm.;Solid Steel 0.9 mm. - 1.2 mm.;Solid Steel 0.035 in. - 0.045 in.;Flux Cored 0.035 in. - 0.045 in.;Flux Cored 0.9 mm. - 1.2 mm.;Silicon Bronze 0.030 in. - 0.035 in.;Silicon Bronze 0.8 mm - 0.9 mm.
• Wire Feed Speed Display: 1.3 m/min - 20 m/min; 50 IPM - 800 IPM
• Height: 19.25 EA
• Length: 26.25 EA
• Weight: 99 EA
• Width: 13.75 EA
• Country of Origin: United States
