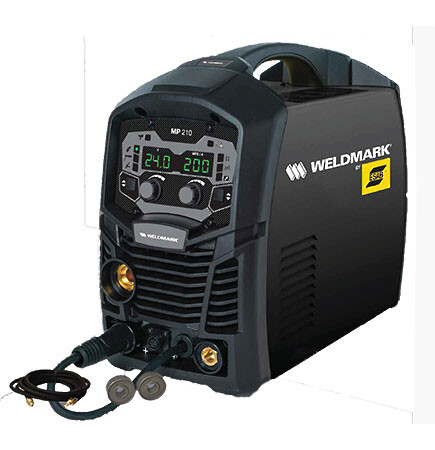

MP210 Multi-Process Stick/Tig/Mig 120-240 Volts

Weldmark by ESAB inverter-based 115/230 VAC, single phase multi-process 200 amp portable welding machine

STICK - TIG - MIG

Weldmark by ESAB® MP210 inverter-based welding system is ready to tackle steel, stainless steel and aluminum projects. Featuring professional-grade arc characteristics and full-featured digital controls which enable fine-tuning of the arc performance to deliver superior welds. MP210 weighs just under 29 lbs and offers dual-voltage 120/230V flexibility. Take this welder wherever work takes you - around the shop, in the field or at home in your garage

Comes with:

• Inverter Welder
• 023-030, 030-035 drive rolls
• 17V series tig torch
• 180amp Tweco Fusion mig gun
• Electrode holder
• Ground clamp w/50mm Dinse connector
• Fowgauge w/hose
• 2-lb spool 70S-6 Mig Wire

Features:

• Weldmark by ESAB MP210 inverter-based 200 amp multi-process dual voltage welding machine
• MIG/Flux Cored/Stick/Lift TIG welding system with a 10 - 200 amp output
• Stable Lift TIG arc at low amperage for total control
• Has power to run stick electrodes up to 5/32"
• Digital controls with large easy-to-read LED display enables fast, easy and more accurate operation
• Advanced functions: MIG wire run-in, burn-back, variable inductance, 2T/4T trigger control, Lift TIG arc starts, gas pre and post-flow, stick hot start and arc force control
• Wire spool capacity: 4 inch (2 lb) and 8 inch (11 lb) spools
• Spool gun-ready for MIG aluminum with optional spool gun (1027-1397) and optional remote foot control (W4014450) for Lift TIG welding (both items sold separately - not included)
• Portable and flexible to weld in a variety of locations (weighs less than 29 lbs)

Warranty 3 years

• Aluminum Wire Size Range~ MAX0.035 inch
• Aluminum Wire Size Range~ MIN 0.030 inch
• Applicable Materials
• Steel, stainless steel and aluminum
• Cored Wire Size Range~ Max0.035
• Cored Wire Size Range~ Min0.030
• Duty Cycle~Lift TIG 115V  - 40% @90A|100% @57A
• Duty Cycle~Lift TIG 230V  -15% @200A|100% @77A
• Duty Cycle~MIG 115V  -40% @90A|100% @57A
• Duty Cycle~MIG 230V  15% @200A|100% @77A
• Duty Cycle~Stick 115V  40% @70A|100% @44A
• Duty Cycle~Stick 230V 20% @170A|100% @66A
• Electrode Capacity~Max 0.156

Features:

• Compatible with 10 kVa generators
• Input Current Single Phase 20 - 40 amps
• Input Power Hertz 50/60
• Input Power Phase Single
• Input Power Voltage 115/230
• Item Depth US 19.2
• Item Height US 15
• Item Width US 8.7
• Lead Cord Length 10
• Max Plate Thickness 0.375
• MIG Gun Amperage Rating Max 180
• MIG Gun Item Length 10
• MIG Gun Series Fusion® 180
• Net Weight US 28.7
• Output Current Type DC
• Power Source Type Inverter
• Process GMAW|FCAW|GTAW|SMAW
• Rated Output Amps Maximum DC 200
• Rated Output Amps Minimum DC 10
• Solid Wire Size Range~Max 0.03
• Solid Wire Size Range~Min 0.024
• Spoolgun Capable Yes
• Welding Principle Constant Voltage (CV)
• Wire Feed Speed Range~Max 450
• Wire Feed Speed Range~Min 0
