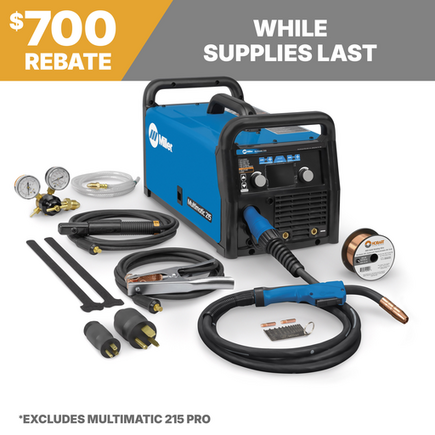

Multimatic® 215 Multiprocess Welder Basic Package

Details:

Easy-to-use and versatile MIG, Stick and DC TIG welder that helps build skills. Color screen featuring Auto-Set™ Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

Features:

• MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
• Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!
• Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
• There are two gas connections on the back of the machine—one for MIG and one for TIG.
• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
• Smooth-Start™ provides smooth, spatter-free MIG starts.
• The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine.
• Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

Specifications:

• Country of Origin: United States
• Length: 20.5
• Width: 11.25
• Height: 12.5
• Weight: 38
• Max Open Circuit Voltage (VDC): 58
• Multiprocess Specifications: [[c2759a9a5d1a]], [[cea130206b8a]], [[8e1ef2eed565]], [[4d3e5eba7848]], [[fb5d1bad24fe]], [[73827a97e606]], [[dd80cf9a95b7]], [[5ee0f5636015]], [[b8ac54d6dd1d]], [[f656e9ee5941]], [[d6d5e107e916]], [[07192407bda6]]
• Weld Output: CC / CV
• Min Wire Feed Speed IPM (IPM): 60
• Max Wire Feed Speed IPM (IPM): 600
• Input Voltage: 110/115/120 V|220/230/240 V
• Input Phase - To Be Deleted: 1Phase
• Input Phase: 1-Phase
• Amperage Min (A): 20
• Amperage Max (A): 230
• Amperage Range: 20 A - 230 A
• Min Wire Feed Speed MMin (m/min): 1.2
• Max Wire Feed Speed MMin (m/min): 10.8
• Wire Feed Speed Display: 1.8 m/min - 10.8 m/min|70 IPM - 425 IPM
• Current Type: DC
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Input Hz: 50/60 Hz
• Display Min Thickness Mild Steel: 24 ga.
• Display Max Thickness Mild Steel: 3/8 in.
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in. (MIG)|Mild Steel 24 ga. -3/16 in. (TIG)|Mild Steel 16 ga. - 3/8 in. (Stick)|Aluminum 18 ga. - 3/8 in (MIG)
