Weldmark by Tweco 23-50 1/2" Mig Nozzle pkg of 2

SKU:23-50      WELDMARK SKU: WMK23-50

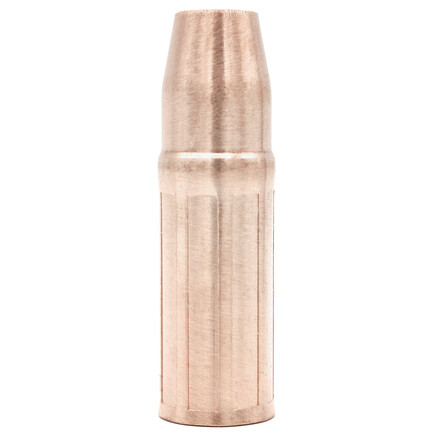

Weldmark by Tweco 23-50 1/2" Mig Nozzle pkg of 2

1/2" Nozzle 1/8"-5/32" Tip Recess

Weldmark® by Tweco® 23 Series Nozzle with 1/2" bore size is designed for standard gas diffuser and perfect for protecting the quality of your welds as well as the life of your gun. 3.219" Nozzle with 0.875" OD is ideal for use in medium to heavy duty welding application up to 300 A. It features part number rolled stamped on the outer surface for easy identification. Nozzle with 9/16"-18 UNC-2B thread size and recess contact tip relationship 0.125 - 0.156" is made of copper alloy. It has a 3-piece design that includes a nozzle housing, which is cut and formed from copper alloy tubing, a nozzle insert machined from a solid brass and nozzle insulator constructed of silicone material. It has nozzle insert that allows machining of internal threads in order to match the conductor tube OD threads. Nozzle offers electrical insulation required from the gas diffuser using the nozzle insulator. Nozzle is sold as 2 per pack.

FEATURES:

• Easy identification - part no rolled stamped on the outside surface
• Nozzle housing - cut and formed from copper alloy tubing
• Nozzle insulator - made from g7 silicone material, providing the electrical insulation needed from the gas diffuser
• Nozzle insert - machined from a solid brass allows and is crimped in place to allow the nozzle to slide over a metal spring which is part of the gas diffuser
• Nozzle threads onto the conductor tube assembly
• 3-piece design - does not require an additional insulator
