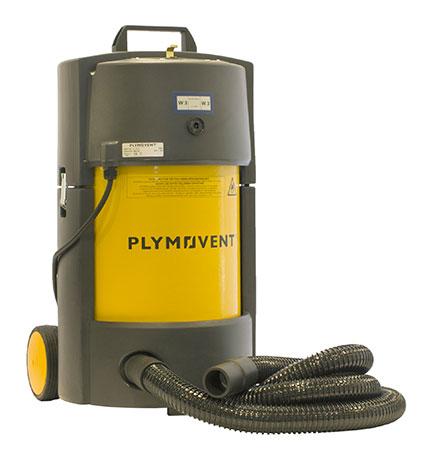

Plymovent PHV Mobile Fume Extractor Auto Start Stop110 Volts

SKU: 102462

Plymovent PHV Mobile Fume Extractor  HEPA, Alum Prefilter Auto Start Stop 110 Volts

• With its four stage filtration system, it is ready for welding stainless steel with standard supplied HEPA filter
• Place your welding cable over the top of the extractor to control the automatic START / STOP feature

How does the portable extractor work:

The PHV unit extracts the welding fumes at the source, near the welding process. Separation and filtration takes place in five steps and ensures a filtration efficiency of almost 100%*.

• The tangential inlet starts with the cyclonic separation of the larger particles.
• Two spark arresters prevent sparks from reaching the filter cartridge. A removable/cleanable aluminium pre filter captures the larger particles while the integrated spark arrester captures the finer particles.
• The Dura-H main filter cartridge has a surface of 12 m2,resulting in a long filter lifespan and a consistent high filtration thanks to the alternately sealed channel technology.
• The optional activated carbon filter (FAC -HV) neutralises unpleasant smells.
• The final HEPA* filter guarantees the high filtration efficiency. The HEPA filter makes the PHV suitable for stainless steel welding fume applications and is fitted as standard.

FILTER SYSTEM:

• Prefilter |  Aluminum and  Neoprene (G2 according to DIN EN 779) Efficiency 65%<80%
• Dura H Main Filter |   Cellulose Fibres + Cardboard + Aluminium (H10 according to DIN EN 1822) Efficiency >95% (particle size: 0,3 μm)
• Hepa Filter | Cellulose Fibres with Polypropylene Housing (H12 according to DIN EN 1822) Efficiency >99,5% (particle size: 0,3 μm)

OPTIONAL FILTER:

• FAC HV Polyester Fibres with Activated Carbon

EXTRACTION CAPACITY:

• speed low: 160 m3/h  |  speed high: 230 m3/h
• NOISE LEVEL:
• Low Speed  63 dB(A)
• High Speed  70 dB(A)

PACKAGE INCLUDES THE FOLLOWING ITEMS:

• PHV Mobile Fume Extractor
• EN40 Extraction Nozzle with Magnetic Mount
• (8'-3") 2.5 Meter Hose
• Spare Carbon Brush (4 pieces) 2 per motor
• Pre-Filter (Aluminum and Neoprene)
• Dura-H Main Filter (Cellulose Fibres | Cardboard | Aluminum)
• Hepa Filter (Cellulose Fibres with Polypropylene Housing)
