POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak®
Based on unit price: $3,779.99
Qualified for Free Shipping
Made in USA
- Description
- Replacements parts & accesories
- Spec. Sheets
- Rebate
Details:
SIMPLE, VERSATILE, RELIABLE. The POWER MIG 215 MPi multi-process welder is a reliable, easy-to-use machine for the general fabricator, small contractor or repair personnel. The sleek and solid ergonomic design with multiple lift points maximizes mobility around the shop, and user-friendly technology makes the setup process and selection of weld settings incredibly simple. Take on any job - MIG, TIG, Stick or Flux-Cored - with the versatile POWER MIG 215 MPi welder.
Features:
- Multi-Process Capable - Welds MIG, Flux-Cored, Stick, and DC TIG.
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
- Built in TIG Solenoid and Foot Pedal Adapter - The POWER MIG 215 MPi welder is designed to accept a TIG torch, no install required.
- Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.
- Ready.Set.Weld® Technology - Simplifies setup by recommending optimal welding parameters for each welding procedure.
- ArcFX® Technology - Provides instant visual feedback on how settings affect the weld outcome.
- Memory Capability - Easily recall saved settings to get welding faster.
- Lightweight and Portable - Only 48 lbs.

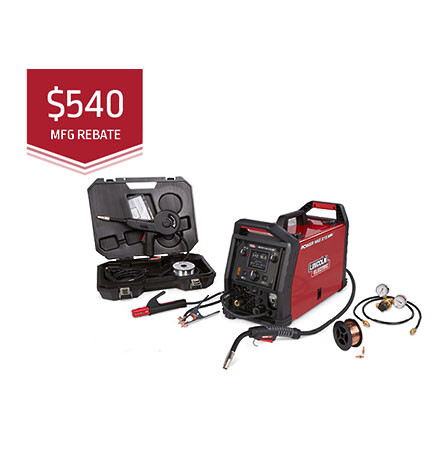

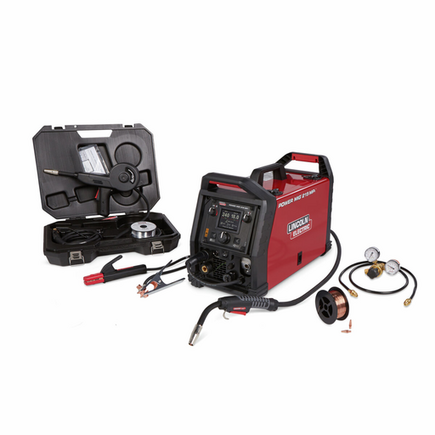

Whats Included:
- (1) POWER MIG 215 MPi Multi-Process Welder, (1) K4076-1 Magnum® PRO 175L Gun 10 ft. (3.0 m), (1) K3269-1 Magnum PRO 100SG Spool Gun, (1) 230V to 120V Power Cord Adapter, (1) Work Cable and Clamp, (1) Electrode Holder and Lead Assembly, (1) Adjustable Gas Regulator and Hose, (1) Gasless Nozzle, (1) Gun Cable Liner (pre-installed in gun), (1) Spindle Adapter, (1) ED030631 Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® MIG Wire, (2) Contact Tips 0.025 in (0.6 mm), (2) Contact TIps 0.035 in (0.9 mm), (1) Drive Rolls 0.025-0.030 in (0.6-0.8 mm) and 0.035 in (0.9 mm) (Installed), (1) Knurled Drive Roll 0.030-0.045 in (0.8-1.1 mm), (1) Wire Guide 0.045 in (1.1 mm) and 0.025-0.035 in (0.6-0.9 mm)(Installed)
Specifications:
- Country of Origin: United States
- Warranty Length: 3 Years
- Welding Technology: Inverter/Chopper
- Input Phase: 1Ph
- Input Voltage Type: Multiple
- Input Hertz: 60
- Output Polarity: DC
- Output Mode: CC; CV; CC/CV
- Max Output: 200-299
- Input Icon: 1 Phase; 60 Hz
- Output Icon: DC; CC/CV; 2-roll
- Equipment Technologies: Digital UI
- Cooling: Air
- Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 120/1/60
- Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): MIG: 105A/19.25V/40% 80A/18V/100%
- Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle): TIG: 130A/15.2V/40%100A/14V/100%
- Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle): Stick:85A/23.4V/40%60A/22.4V/100%
- Phase 1: Input Current at Max Rated Output #1 (Current): 22A
- Phase 1: Input Voltage #2 (Voltage/Phase/Hertz): 230/1/60
- Phase 1: Rated Output #2A (Current/Voltage/Duty Cycle): MIG:215A/24.8V/30%120A/20V/100%
- Phase 1: Rated Output #2B (Current/Voltage/Duty Cycle): TIG:175A/17V/30%110A/14.4V/100%
- Phase 1: Rated Output #2C (Current/Voltage/Duty Cycle): Stick:175A/27V/30%110A/24.4V/100%
- Phase 1: Input Current at MAX Rated Output #2 (Current): 29A
- Height: 15.08 in
- Product Height (mm): 383
- Width: 10.88 in
- Product Width (mm): 276
- Length: 23.14 in
- Product Length (mm): 588
- Weight: 48 lb
- Product Weight (kg): 21.8
- Machines Processes: Stick (SMAW); Flux-Cored (FCAW); TIG (GTAW); MIG (GMAW)
- IEC Rating: IP21S
- Max Rating: 220A
- Number of Operators per Machine: 1
- Machines Communication Technology: digital
- Work Lead Connector Type: Dinse
- Work Cable Length: 10 FT
- Spool Gun Compatible (Duty): Light
- Arclink Connector: No
- Tap or Continuous Control: Continuous
- Work Clamp Included: Yes
- UI Type: TFT - Graphic
- Wire Feeders Processes: MIG; Flux Cored
- Contact Tips Included: Yes
- Maximum Wire Thickness: 0.045 in (1.1 mm)
- Minimum Wire Thickness: 0.025 in (0.6 mm)
- Sample MIG Wire Included: Yes
- Input Voltage: 120/230
- Input Current: 120V: 15A, 230V: 15.9A
- Input Phase: 1
- Input Power: 120/230/1/60
- Mode Icon: CC/CV
- Output Range: 120V: 20-140A DC 230V: 20-220A DC Max. OCV : 56V
- Polarity: DC
- Rated Output: 120V: 105A/19.3/40% 230V: 215A/24.8V/30%
How to Claim Your Lincoln Electric Rebate (Canada)
Follow these simple steps to claim your rebate through the Buy Red, Save Green promotion:
1. Purchase a qualifying product
Buy an eligible Lincoln Electric welder, engine drive, or VIKING welding helmet from an authorized Canadian distributor such as Lock 8 Equipment Inc.
2. Keep your invoice or receipt
You will need a copy of your invoice showing:
- Purchase date
- Seller name (Lock 8 Equipment Inc.)
- Product description or SKU
- Price paid
3. Locate the serial number (if applicable)
For welders and engine-driven machines, you will need the product serial number when submitting your claim. Helmets typically do not require a serial number.
4. Submit your rebate claim online
Visit the Lincoln Electric Canada rebate portal (www.lincolnrebates.ca) and create an account if you are a first-time user.
Once logged in, select the applicable promotion and complete the rebate claim form using your purchase details.
5. Upload your documentation
Attach a clear copy of your invoice or receipt when prompted.
If you are claiming stacked rebates on accessories or consumables, ensure eligible items are clearly visible on the invoice.
6. Submit your claim
After submitting, you will receive a confirmation email acknowledging receipt of your rebate claim.
7. Receive your rebate
Once approved, your rebate will be issued according to the promotion terms. Processing times may vary.
Important Notes:
-
Claims must typically be submitted within 30 days of purchase.
-
Promotions are subject to product eligibility, availability, and while supplies last.
-
Only qualifying products listed under the promotion are eligible.
-
Terms and conditions may apply.
POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak® offers MIG, Stick, and TIG welding with a focus on aluminum, ideal for professional and industrial applications requiring versatility and high-quality welds.
POWER MIG® 215 MPi™ Multi-Process Welder Aluminum One-Pak® is a versatile welding machine designed to handle MIG, Stick, and TIG processes, with a specialized focus on aluminum welding. Perfect for professional and industrial use, this welder provides superior arc control and high-quality welds on aluminum and other materials. The One-Pak® package includes everything you need for seamless welding, making it a convenient solution for fabrication, repair, and maintenance projects. With its advanced features, precision, and ease of use, the POWER MIG® 215 MPi™ is the ideal choice for professionals requiring flexibility and performance in demanding welding environments.
