Rapol 500 lb Positioner 120 Volt

SKU: P-500

Rapol 500 lb Positioner 120 Volt

POSITIONER IS READY TO BE CUSTOM TAYLORED TO SUIT YOUR NEEDS.

CONSTRUCTION FEATURES:

• Positioner - Using Positioner the operator can rotate or tilt the structure to the optimum position. They provide precise positioning and smooth rotation.
• An on/off foot switch on 10 feet of cable provides hands free operating convenience.
• They’re the ideal machines to increase both your productivity and profitability.
• Control - The solid state (SCR) DC control with dynamic braking – variable speed table rotation motor system will always provide proper weld speed settings and steady rotation rates.
• Rotation speeds are electonically controlled in both forward and reverse direction.
• Drive -  Heavy-duty self-locking worm gear reducer on rotation drive positively prevents the load from moving unless the worm gear is revolving.
• Weld Ground  -  Another convenient feature is the preloaded taper roller bearings mounted table spindles that assure steady weld ground current conduction.
• Electrical System - The electrical control components are housed in an easy access cabinet at the back of the machine.
• Components and wiring are neatly laid out and labeled for easy troubleshooting.
• Control Panel  - User friendly and positioned on the back of the machine.

STANDARD FEATURES:

• Load Capacity: 500 lbs (All Axis)
• Center of Gravity: 2.5”
• Table Size: 20” Dia / 2.5 Thru Hole (Optional)
• Table Height: 18”
• Rotation Speed: 0.1- 5 RPM
• Rotation Motor: 1/4 HP DC
• Tilt Range: 0 - 135 Deg (Horizontal Flat to Downward 45)
• Weight: 260 lbs
• Voltage: 115V 60 Hz

OPTIONS:

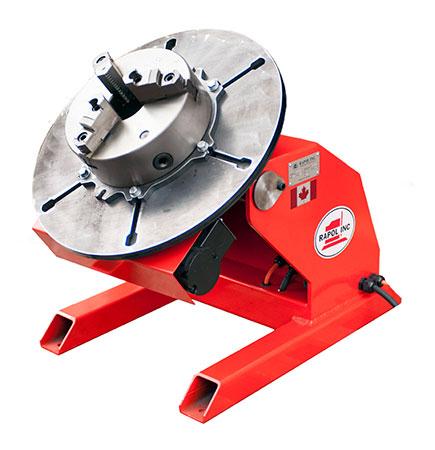

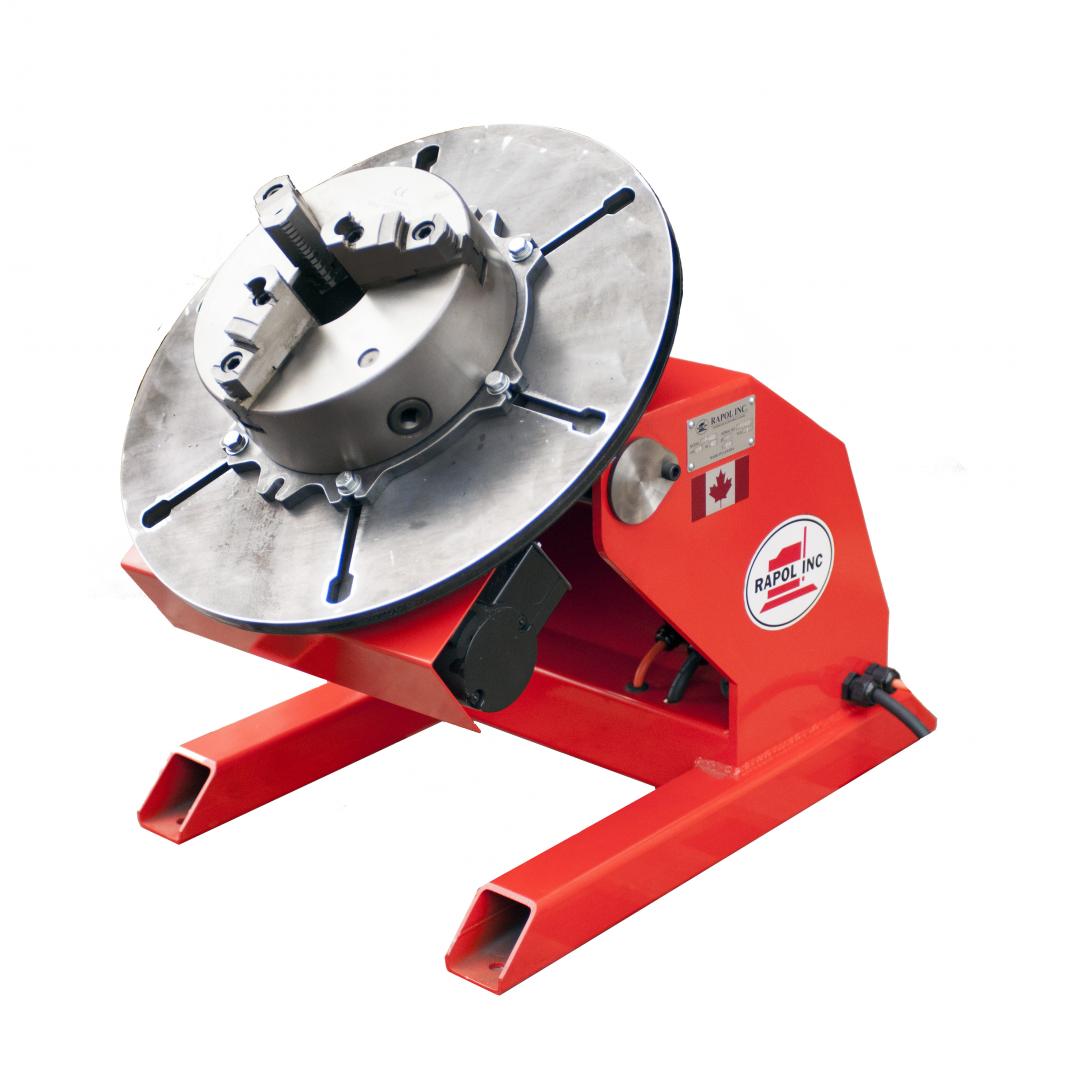

• 8" Self Centering 3 Jaw Chuck with mounting plate
• 10" Self Centering 3 Jaw Chuck with mounting plate
• 12" Self Centering 3 Jaw Chuck with mounting plate
• 2-1/2"  Cut-Through Hole Option
• Forward / Revers Foot Switch
• Digital Display
• Integrated Variable Foot Switch
• Ergonomic Free Standing Remote Consol
• Continuous Rotation Toggle (On/Off)
• Torch Holder Manual Adjustment  with Clamp Lock

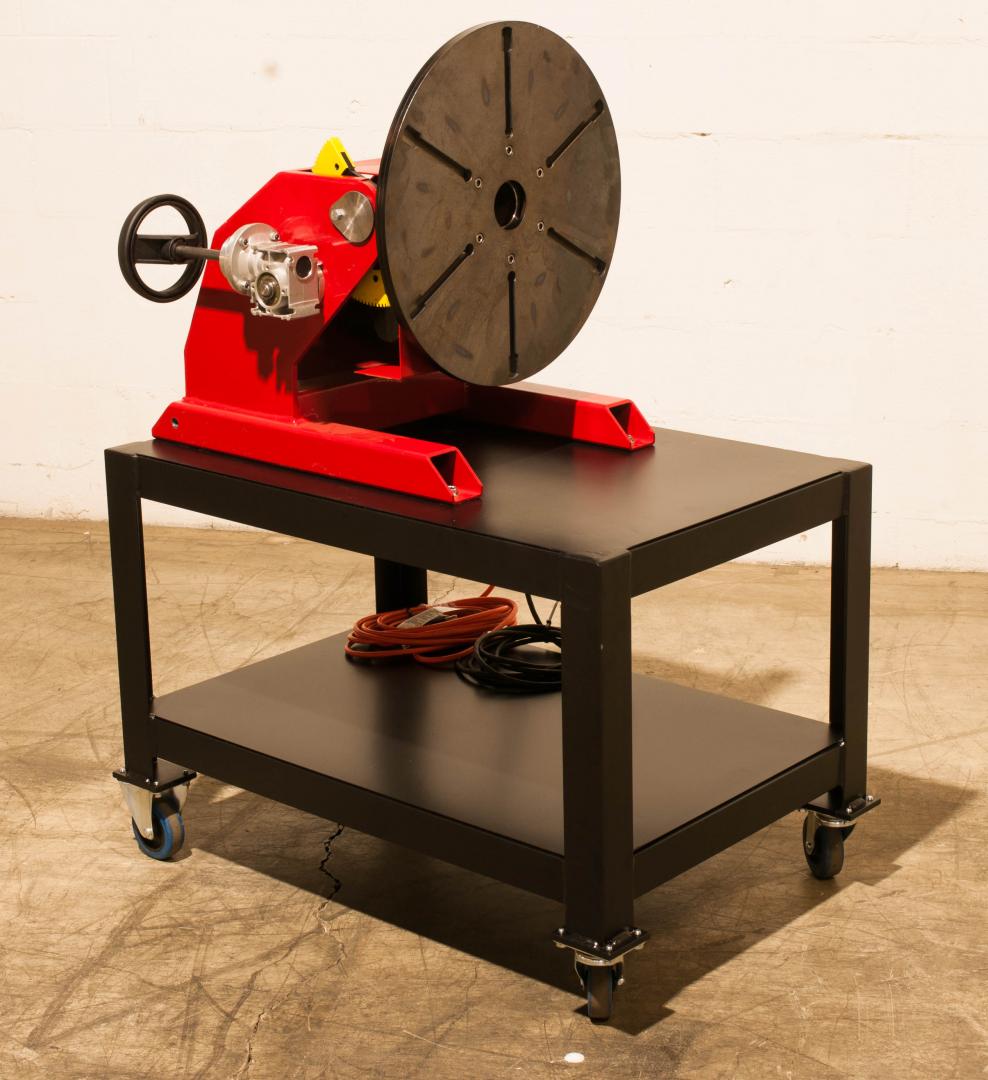

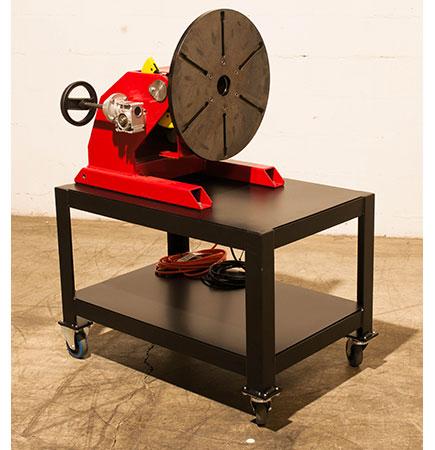

• 2 Shelved Weld Cell Support Table
• 2 Shelved Weld Cell Support Table with Locking Castor Wheels
• Automation Customization
