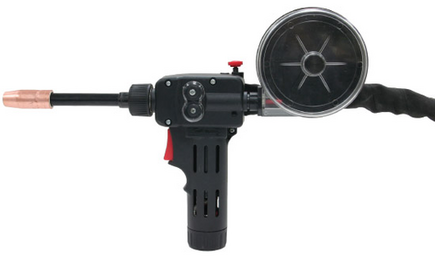

Tweco® SG160TA-12 Spool Gun

Details:

The Tweco® SG160TA-12 Spool Gun is specifically designed as a direct-plug spool gun for your Fabricator® 141i, 181i or 211i welder. The SG160TA is excellent for running 1 lb. spools of aluminum MIG welding wire or 2 lb. spools of mild steel, stainless steel or silicon bronze MIG welding wire. The SG160TA-12 Spool Gun can also be used with ESAB® Rebel™ multi-process welders (auto-detect feature not available)

Features:

• Reliable direct connect Spool Gun for use with the Thermal Arc 141i, 181i and 211i welders
• Lightweight gun at only 6.40 lbs. (2.90kg)
• Ready to weld with 0.030"/0.035" (0.8mm - 0.9mm) welding wire (wire not included)
• Heavy-duty drive motor
• Impact resistance handle
• Protective sleeve covering the power cable, gas hose and trigger cable
• Easy to remove clear spool cover for installing a standard 4" (102mm) spool
• 12ft. (4M) cable assembly
• Adjustable drive roll tension and pressure lever on the Spool gun handle

Specifications:

• Country of Origin: China
• Physical Size: 17.5 X 19 X 5
• Wire Size: 0.030"-0.035"
• Wire Feed Speed: 630ipm
• Duty Cycle: 160 A @ 20%
• Process: MIG (GMAW)
• Output Amps (Max): 160 A
• Lead Cord Length: 12.5 ft.
