Threaded Flange Bolt Hole Aligners Two Hole Pins Large 1/2" to 1-15/16"
Price: $116.36 (package of 1)
Based on unit price: $116.36
Based on unit price: $116.36
✔
Brand:
Flange Wizard
SKU #: 42050-TL
- Description
- Technical specifications
- Replacements parts & accesories
- Videos
SKU: 42050-TL

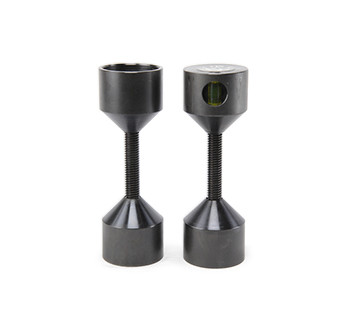

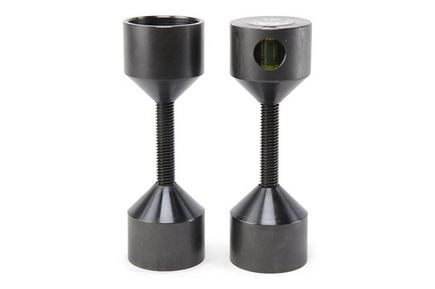

Threaded Flange Bolt Hole Aligners Two Hole Pins Large 1/2" to 1-15/16"
The Two Hole Pin 42050-TL (large threaded) is for flanges with holes 1/2″ to 1-15/16” in diameter.
FEATURES:
- All models are machine from hardened steel to make a very sturdy and lasting tool.
- We use double lead fast threads instead of ACME threads because they are as fast, if not faster, to screw on and more importantly, we have found that ACME threads tend to loosen, and don’t hold job as secure as our double lead fast threads.
- Models 42050-TM, 42050-T and 42050-TL have one pin that has a 360° vial for easier vertical leveling that just “snap” in and out for easy replacement.
- The 42050-TXL model fits flanges with hole sizes to 2-7/8″ in diameter.
150 lb 300 lb 400 lb & 600 lb flanges (1/2″ to 1-15/16” holes)
1/2 inch Pipe to 8 inch Pipe
1500 lb flanges (1/2" to 1-15/16" holes)
1/2 inch to 8 inch Pipe
900 lb flanges (1/2" to 1-15/16" holes)
1/2 inch to 16 inch Pipe
Replacement Parts & Accessories (Click to Expand)
2 Hole Pin Extensions (includes all individual items)
$21.26
