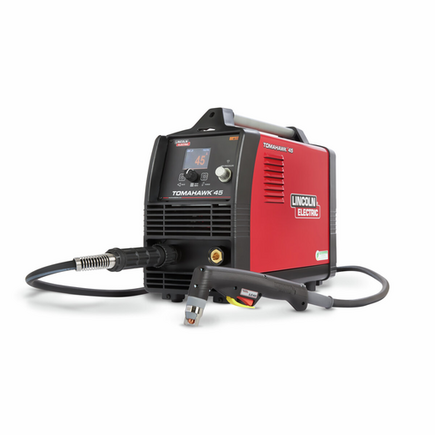

Lincoln Tomahawk® 45 Plasma Cutter with 20 ft (6.1 m) Hand Torch

Details:

Plasma Cutting - Anywhere, Anytime. The Tomahawk 45 plasma cutting system is versatile and portable, weighing only 28 lbs. You can easily carry it to any job site and start cutting projects. This system can handle everything, whether cutting through thick metal or working with expanded metal. With its 45A capability, you can tackle even the most challenging cutting tasks. Tomahawk initiates the plasma arc with a simple yet reliable touch-start mechanism that eliminates many failure problems associated with high-frequency start systems. The control system includes a Parts-in-Place™ feature to ensure consumables are in place before initiating the cutting or gouging process. Hook up the compressed air, grab the torch, and you’re all set.

Features:

• 2.8 in. LCD Screen – For an easier and user friendly user interface.
• Lightweight and Portable – Easily carried by one person.
• Continuous Output Control – Focus the arc for different material thickness.
• Touch Start System – Reliable plasma arc initiation without high frequency.
• Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.
• Cool Operation, Long Consumable Life - Numerous torch consumables for a wide range of hand-held applications.
• Added Safety – Our Parts-in-Place system detects correct installation of consumables and torch.
• Engine Drive Compatible – Select a Lincoln Electric recommended engine driven welder / generator to power your Tomahawk in remote locations.

Whats Included:

• (1) Tomahawk 45 Plasma Cutter, (1) K2847-1 LC40 Hand Torch 20 ft Cable, (3) KP2843-1 Electrode, (3) KP2843-2 Nozzle 40A, (2) KP2842-4 Swirl Ring, (1) KP2843-5 Retaining Cap (Standard), (1) KP2843-2 Drag Spacer, (1) Air Regulator and Pressure Gauge, (1) Internal Water Separator, (1) Work Clamp and Cable, (1) Shoulder Strap, (1) Input Power Cord

Specifications:

• Country of Origin: Poland
• Warranty Length: 3 Years for Machine, 1 Year for Torch
• Welding Technology: Inverter/Chopper
• Input Phase: 1Ph
• Input Hertz: 60
• Output Polarity: DC
• Input Icon: 1 Phase; 60 Hz
• Output Icon: DC
• Cooling: Air
• Phase 1: Input Voltage #1 (Voltage/Phase/Hertz): 230/1/60
• Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle): 30A/92V/100%
• Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle): 40A/96V/60%
• Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle): 45A/98V/45%
• Phase 1: Input Current at Max Rated Output #1 (Current): 23A
• Height: 15.2 in
• Product Height (mm): 385
• Width: 8.5 in
• Product Width (mm): 215
• Length: 18.9 in
• Product Length (mm): 480
• Weight: 34 lb
• Product Weight (kg): 15.42
• Machines Processes: Plasma Gouging; Plasma Cutting
• Max Rating: 45A
• Work Clamp Included: Yes
• Plasma Machines Process: Cutting; Gouging
• Torch Included: Yes
• Gas Supply: Air or Nitrogen
• Gas Pressure Required: 80 - 110 psi (6 -7.5 Bar)
• Recommended Cutting Capacity (Mild Steel) (In/ft): 1/2 in @ 20 ipm
• Recommended Cutting Capacity (Mild Steel) (mm/M): 12.7 mm. @ .51 m/min
• Maximum Cutting Thickness (Mild Steel) (In/Ft): 5/8 in @ 12 ipm
• Maximum Cutting Thickness (Mild Steel) (mm/M): 15.9 mm. @ .30 m/min
• Maximum Severance (Mild Steel) (In/Ft): 3/4 in @ 8 ipm
• Maximum Severance (Mild Steel) (mm/M): 19.1 mm. @ .20 m/min
• Output Range: 10-40A
