Venture 150 S Battery Stick/Tig welder

Details:

Uses standard North American Style Tig Torches, 9, 17 Series

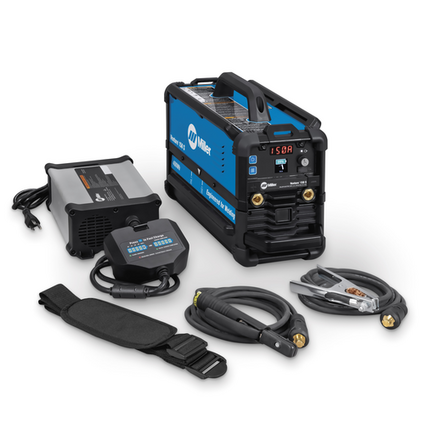

Package includes the Venture 150 S, 400Wh Battery Pack, and Charger. The Venture 150 S lightweight and compact battery powered Stick/TIG welder with swappable battery packs engineered specifically for welding.

Features:

• Save Time: Faster setup and pack-up saves up to 250 hours annually — that’s more time for welding.
• Compact Design: Light, convenient and easy to carry between job sites.
• Engineered Specifically For Welding: Swappable battery packs so you can weld all day.
• Reliable Output: 100% duty cycle at maximum output
• 6010 Stick Electrode Capability: Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Hot Start™ Technology: Adaptive control provides positive arc starts without sticking.
• Lift-Arc™: Provides arc starting that minimizes contamination of the electrode without the use of high frequency.
• Created for Versatility: Batteries are lightweight and swappable, so users can weld anywhere
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Thermal Overload Protection: Helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.

Specifications:

• Max Open Circuit Voltage: 80 VDC
• Battery Charging Options: Fast: 0-95% in < 30 mins.;Standard: 0-95% in < 60 mins.
• Weldable Metals: Stainless Steel;Steel
• Current Type: AC;DC
• Weld Output: CC
• Amperage Range: Stick: 20 - 150 A;TIG: 10 - 160 A
• Material Thickness: Steel 0.020 in. (0.5 mm) - 3/16 in. (4.8 mm)
• Battery Lifespan: Over 1,000 charge cycles under typical use cases and with proper care
• TIG Arc Time Per Charge: 15.54 minutes at 100A ;8.33 minutes at 160A
• Stick Electrode Consumption Per Charge: 8.021 1/8 in. 7018 at 110A;13.45 3/32 in. 7018 at 80A;14.49 3/32 in. 6010 at 60A;8.14 1/8 in. 6010 at 90A;5.79 1/8 in. 7018 at 150A;5.57 5/32 in. 6010 at 120A
• Machine Input Voltage: 57.6 VDC
• Charger Input Voltage: 120 V
• Input Hz: 50/60 Hz
• Input Phase: 1-Phase
• Country of Origin: United States
