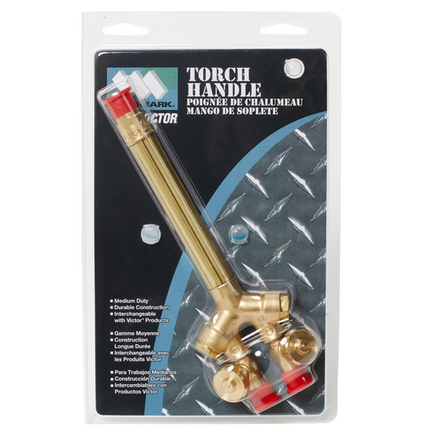

Victor® Torch Handle WH270FC-V Medium Duty / Flashbacks / Check Valves
Price: $167.27 (package of 1)
Based on unit price: $167.27
Based on unit price: $167.27
✔
Brand:
Weldmark® by Victor®
SKU #: WEM 0382-0346
- Description
- Replacements parts & accesories
- Spec. Sheets
Details:
This Weldmark by Victor welding torch handle is made from Brass, and designed with a straight handle and built in flash arrestors and check valves. It has a UNF 0.5625-18 male threaded connection. It is approved for use with acetylene, propane, butane, liquid air fuel gas, Mapp, natural gas (2 psi & above), and propylene fuel services. Built for heavy duty use in OFW, oxy fuel heating, and brazing processes. Compatible with CA270-V oxy fuel torch series, and WH270FC-V handle series. UL Listed.
Features:
- Medium duty brass torch handle
- Built-in reserve flow check valves and flashback arrestors
- Tube within a tube design
- Three piece "Y" rear assembly with threaded connection
- B size 9/16" x 18 hose connections
- Valves with stainless steel ball valves
- Accepts CA270-V (0381-1926) cutting attachment
- Uses W-1 series welding tips and MFA-1/MFN-1 heating assemblies
- Interchangeable with Victor Products
Specifications:
- Country of Origin: Mexico
- Built in Flash Arrestors: Yes
- Freight Class: 70
- Fuel Service: Acetylene|Propane|Butane|Liquid Air Fuel Gas|Mapp|Natural Gas (2 psi & above)|Propylene
- Handle Length Metric: 215.9000 mm
- Handle Length US: 8.5000 in
- Handle Material: Brass
- Handle Type: Straight
- Hose Connection Gender: Male
- Hose Connection Size: 0.5625 in
- Hose Connection Thread Form Type: UNF
- Hose Connection Thread Per Inch: 18
- Master Carton Case Qty: 6
- Master Carton Case UOM: CA
- Master Carton Height Metric: 381.0000 mm
- Master Carton Height US: 15.0000 in
- Master Carton Inner Pack Units: 6
- Master Carton Length Metric: 406.4000 mm
- Master Carton Length US: 16.000 in
- Master Carton Pkg Type: Box
- Master Carton Weight: 14.0000 lbs
- Master Carton Weight Metric: 6.3500 kg
- Master Carton Width Metric: 203.2000 mm
- Master Carton Width US: 8.0000 in
- Member Supplier Source: IWDC Distribution Centers
- Oxy Fuel Torch Handle Series: WH270FC-V
- Oxy Fuel Torch Series: CA270-V
- Packaged Length Metric: 266.7000 mm
- Packaged Weight Metric: 0.6120 kg
- Packaged Width Metric: 165.1000 mm
- Process: OFW|Oxy Fuel Heating|Brazing
- Prop65 Required: Yes
- Prop65 Warning Type: Cancer and Reproductive Harm
- Standard Pack Units: 1.0
- Standard Pack UOM: EA
- Standard UOM: EA
- Torch Handle Connection Type: Threaded
- Weight: 1.0000 lbs
Replacement Parts & Accessories (Click to Expand)

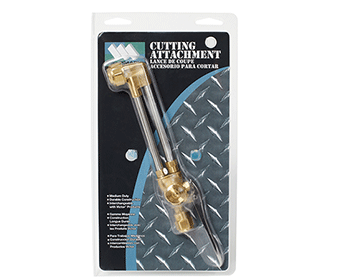

Victor 0381-1926 Cutting Attachment (includes all individual items)
$189.45
