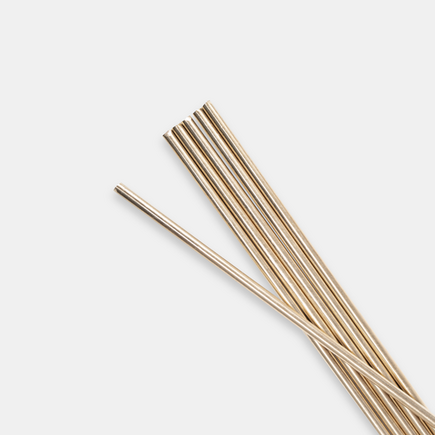

RBCuZn-C Brazing rod Low Fume flux coated 3/32 x 10#

SKU: FC332

Washington Alloy Brazing rod Low Fume flux coated 3/32 x 10lb Sleeve RBCuZn-C

AWS A5.8/A5.8M RBCuZn-C

ASME SFA5.8 RBCuZn-C

BRAZING RANGE 1330-1550

RBCuZn-C Low fuming bronze (bare and flux coated) is a general-purpose, copper base alloy brazing rod used extensively for gas brazing steel, copper alloys, cast iron, nickel alloys and stainless steel.  Its low fuming characteristic and good mechanical properties make this alloy a widely used general-purpose product.  Preheating is recommended for some applications and a bronze brazing flux is required if the rod is not coated.  This brazing rod has a low melting point making it easily machinable and excellent for sheet metal work.  This alloy also possesses high tensile strength and good ductility.

CHEMICAL COMPOSITION, Weight Percent:

Copper 56.0-60.0            Iron 0.25-1.20        Zinc Balance

Manganese 0.01-0.50    Tin 0.80-1.10          Silicon 0.04-0.15

Total Others Elements 0.50 max including Pb of 0.05 and Al of 0.01
