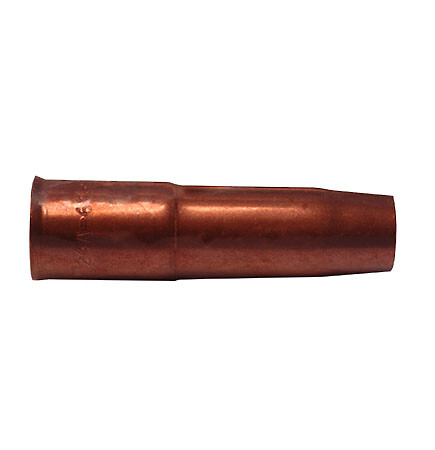

Weldmark by Tweco 24A-62SS 5/8" Slip-On Mig Nozzle 400 amp Pkg of 2

SKU: 24A-62SS

Weldmark by Tweco 24A-62SS 5/8" Slip-On Mig Nozzle 400 amp Pkg of 2

Flush to 1/8" Tip Recess 5/8" Bore

Weldmark by Tweco WMK24 series MIG nozzle, rated for standard duty up to 400 amps, copper, adjustable slip-on connection type, standard recessed bottleneck short stop tip, compatable with Weldmark 400 Series, WeldSkill® 150, WeldSkill® 250, WeldSkill® 400, WeldSkill® WM250, WeldSkill® WM400, Professional Classic® No. 2, Professional Classic® No. 3, or Professional Classic® No. 4 MIG guns, 0.625 in bore size.

Recessed tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)

• Easy identification - part number roll stamped on the outside surface
• Nozzle housing - cut and formed from 122 DHP copper alloy tubing
• Nozzle slides over the standard nozzle insulator - part No 34A
• Air Cooled Copper Nozzle

OTHER SIZES:

• 24A-37SS 3/8" (9.5mm) Standard Short Stop Nozzle Flush to 1/8" (3.2mm) Tip Recess
• 24A-50 1/2" (12.7mm) Nozzle Adjustable Tip Recess - Tip Protruding
• 24A-50SS 1/2" (12.7mm) Nozzle Standard Short Stop 1/8: (3.2mm) Tip Recess
• 24A-62 5/8" (15.9mm) Standard Nozzle Adjustable Tip Recess - Tip Protruding
• 24A-62SS 5/8" (15,9MM) Standard Short Stop Flush to 1/8" (3.2mm) Tip Recess
• 24AH-62SS  5/8" (15,9MM) Standard Short Stop Flush to 1/8" (3.2mm) Tip Recess
• 24A-75 3/4" (19.5MM) Standard Nozzle Adjustable Tip Recess - Tip Protruding
