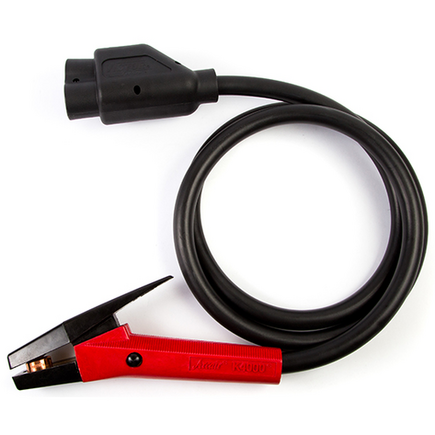

ESAB Arcair® K4000™ Extreme™ Angle-Arc® Gouging Torch 1000 amp 7 foot

61-082-008 ESAB Arcair® Original K4000 Gouging Torch

ORIGINAL ARCAIR® K4000 GOUGING TORCH

NATURAL 15˚ TORCH ANGLE

• Greater operator comfort

DURABLE FRONT INSULATORS

• High impact and heat resistant protecting the torch metal parts

360˚ SWIVEL CABLE

• Less cable twist
• Less strain on operator

FEATURES & BENEFITS

• Patented two-piece boot design
• Molded from a hard nylon reinforced fiber polymer made to withstand the substantial abuse in shop and field applications
• Helps prevent accidental arcing
• No chance of the “boot” pulling away from the power connection as seen with prior “boot” design
• Ease of replacement in the field
• Threaded screws holds the two halves together and can be loosened with a standard straight blade screwdriver
• Available in two (2) different molded “boot” housing configurations
• Conventional Boot (Part No. 94-105-032)
• Accepts one 4/0 welding cable from the power supply and one
• 3/4" (19 mm) diameter air hose assembly providing current and compressed air
• Quick-Connect Hook-Up Kit (Part No. 94-463-046)
• Twist lock-style power connection and air hose extending from therear of the torch cable. This option allows the operator to connect or disconnect the incoming power lead and air line quickly and easily

AMPERAGE RANGE

• 90 – 1000 amps

ELECTRODE SIZE

• Pointed – 5/32" – 1/2" round (4.0 mm – 12.7 mm)
• Jointed – 5/16" – 1/2" round (7.9 mm – 12.7 mm)
• Flat – 3/8" and 5/8" (9.5 mm – 15.9 mm)
• Half Round – 5/8" (15.9 mm)

AIR REQUIREMENTS

• psi – 80
• kg/cm² – 5.6
• cfm – 25
• l/min – 708
