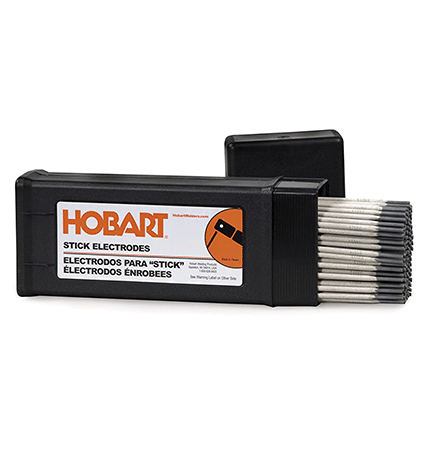

Hobart® E6011 335A 5/32 Diameter, 10 Lb (4.5 Kg) Plastic Pak

HOBART 335A E6011 STICK ELECTRODE 5/32" X 14" X 10LB SLEEVE (50LB CARTON)

Details:

Cellulosic electrode with penetrating characteristics designed to handle coated steels. Used primarily with AC power sources but can be used with DC currents. Product has a stable arc with low spatter levels.

Features:

• Single or multiple pass, AC, DCEP, All Position
• Galvanized Steel, General Fabrication

Specifications:

• Diameter (IN): 5/32
• Diameter (MM)): 4
• Pack Mutiple: 10 lbs
• Pallet Multiple: 2100 lbs
• Package Weight: 10 lbs
• Package Type: 10 Lb (4.5 Kg) Plastic Pak
• AWS Classification: E6011
• Manufacturer Brand: HOBART®

CONFORMANCES AND APPROVALS including Lloyds:

• AWS A5.1, E6011 • AWS A5.1M, E4311

• ASME SFA 5.1, F-3, A-1, E6011

• ABS, E6011

• CWB, E4311

ARC LENGTH: 1/8” to 1/4” (3.2 mm to 6.4 mm)

FLAT: Stay ahead of puddle and use slight whipping motion

HORIZONTAL: Angle electrode slightly toward top plate

VERTICAL-UP: Use slight whipping or weaving technique

VERTICAL-DOWN: Use higher amperage and faster travel, staying ahead of the puddle

OVERHEAD: Stay ahead of puddle and use slight whipping motion
