Miller Maxstar 161 STL DC Stick/Tig Lift Arc 120/240 Volt

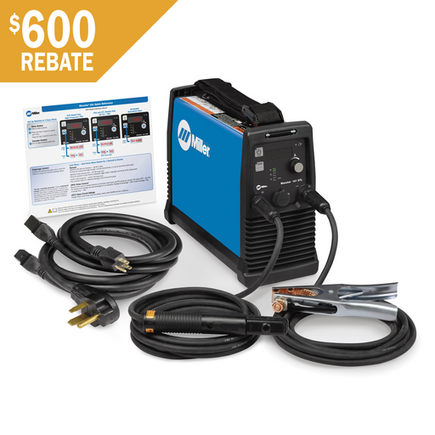

Take advantage of Miller's Build with Blue Winter Savings! Purchase a qualifying Miller® product and receive up to $1,000 in rebates. Combine your purchase with Miller® accessories or Hobart® filler metals to maximize your savings. Act now—offers valid from January 1 to March 31, 2025, while supplies last. For more information click here.

SKU: 161ST

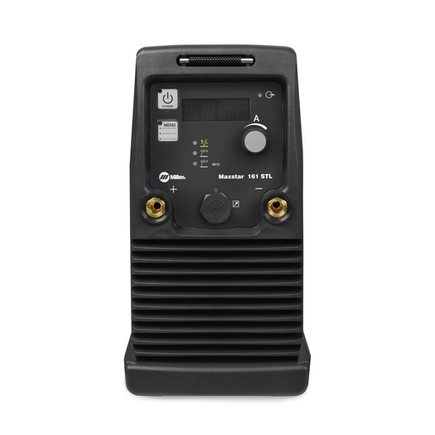

Miller Maxstar 161STL 120/220 Volt Welder

• Small Lightweight welder (13 lbs) with Digital Meters
• Lift Arc Tig with gas solenoid inside the machine
• 6 Pin Remote Connection for either a foot pedal or hand control (Adapter available to go from 6 pin to the Miller 14 pin connection

Duty Cycle in Tig Mode 120 Volts:

• 14.61 Amp Draw | 90 amps 100 % Duty Cycle
• 22.6 Amp Draw | 130 amps 30% Duty Cycle

Duty Cycle in Tig Mode 220 Volts:

• 9.35 Amp Draw | 110 amps 100% Duty Cycle
• 15.05 Amp Draw | 160 amps 20% Duty Cycle

FOR FULL DETAILS VIEW THE BROCHURE UNDER THE SPEC SHEET TAB

Process:

• Stick
• Lift Arc Tig

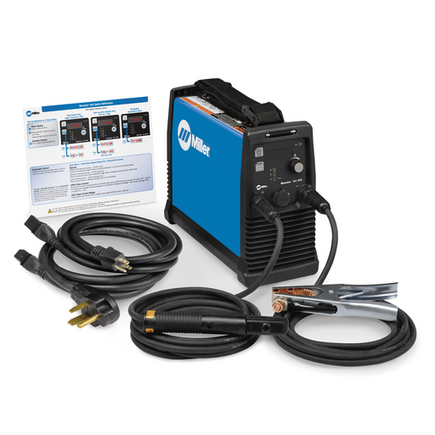

Details of what comes with the Package:

• Maxstar 161 power source
• 6.5 ft. (2 m) 120-volt and 240-volt power cords
• Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
• Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
• One air-cooled TIG torch connector (195234)
• Handle/shoulder strap Quick-reference guid
