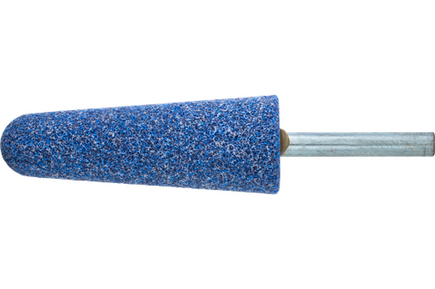

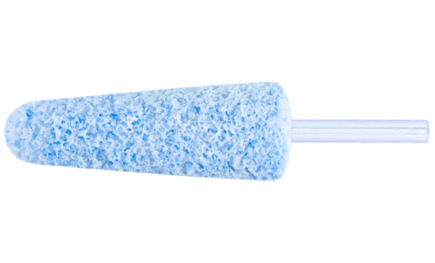

Pferd Ceramic Mounted Point Shape A3 Taper Blue 1 x 2-3/4 long 1/4 shank 46 grit Hardness Grade J

The mounted points are manufactured on automated, state-of-the-art production lines to high standards of dimensional accuracy and stability, consistent quality and close tolerances.

The TOUGH type is specifically designed for use on titanium materials, nickel-based and cobalt based alloys, hardened steel components and built-up weld deposits. Its applications include weld dressing on repair welds and reworking on turbine blades during aircraft maintenance and regrinding of repair welds in tool and die-making.

Series A mounted points are generally used on larger components. Due to the special shapes of series A mounted points, it is possible to grind in a variety of contours. The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing.

Materials that can be worked:

• Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
• High-temperature-resistant materials
• Cobalt-based alloys
• Other non-ferrous metals
• Nickel-based alloys (e. g. Inconell and Hasteloy)
• Titanium
• Hard non-ferrous metal
• Titanium alloys

Applications:

• Grouting
• Grinding out
• Weld dressing
• Deburring
• Surface work
• Work on edges (chamfering, rounding)
• Work on edges
• Fine finishing
• Weld dressing

Drive types:

• Flexible shaft drive
• Straight grinder
