Transtig 210 Job Site Welder Stick / Tig 120/240 Volt

SKU 49,0410,0026 (CONTRACTOR PRICING AVAILABLE) (RENTALS AVAILABLE)

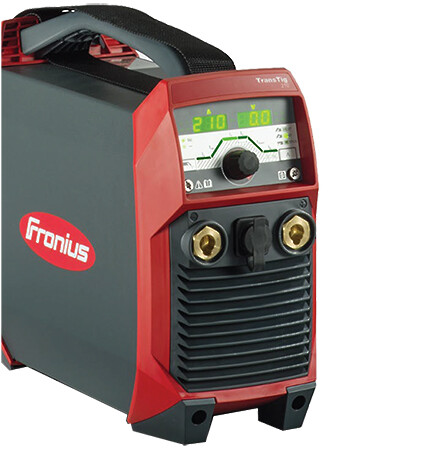

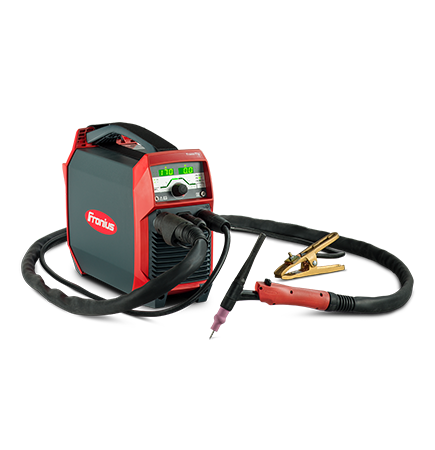

FRONIUS TRANSTIG 210 DC STICK AND TIG WELDER 120/240 Volt

LOCK 8 POLICY "TRY IT BEFORE YOU BUY IT"

ALL WELDING MACHINES THAT ARE IN STOCK, ARE AVAILABLE FOR DEMO AT ANYONE OF OUR TWO LOCATIONS

MACHINE IS CAPABLE OF DOING 98% OF DC TIG WELDING JOBS. NO NEED FOR A LARGER MACHINE. IT WELDS AT 150 AMPS 100% DUTY CYCLE ON 220 VOLTS

FEATURES:

ARC:

• Advanced Stable Arc while welding.
• Higher output at 120 Volts compared to most machines

TAC FUNCTION:

• With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal.

"TOUCH" HIGH FREQUENCY:

• The touchless and gentle high-frequency ignition is the easiest option for igniting the arc.

Touchdown Ignition (Lift Arc with High Frequency Arc):

• Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided. Machine senses the tungsten touching the workpiece, and then after a timed interval a high frequency arc is initiated.

Supply Voltage Tolerance:

• The inverter technology can compensate for voltage fluctuations or an input voltage that is too low, so that the maximum output power is always supplied. This voltage can range from 96 volts to 265 Volts. An Extension Cord up to 100 Meters can be used to supply power to the inverter.

DUTY CYCLE:

TIG welding current 10 min/40 °C (104 °F), U1 = 230 V

• 40% D.C.    170 A    (120 Volt)  /  210 A   (230 Volt)
• 60% D.C.    130 A    (120 Volt)  /  185 A   (230 Volt)
• 100% D.C.  100 A    (120 Volt)  /  160 A   (230 Volt)

Electrode welding current 10 min/40 °C (104 °F), U1 = 230 V

• 40% D.C.   120 A   (120 Volt)  /   180 A   (230 Volt)
• 60% D.C.   100 A    (120 Volt)  /   150 A   (230 Volt)
• 100% D.C.  90 A    (120 Volt)  /   120 A   (230 Volt)

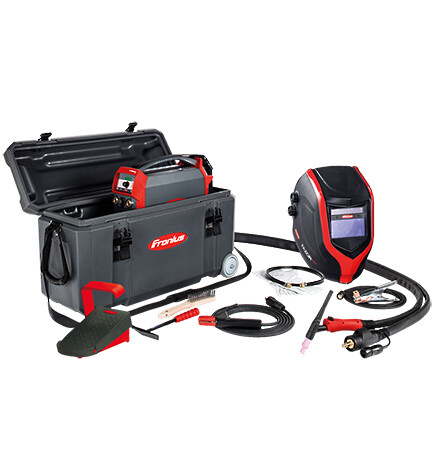

INCLUDED IN THE PACKAGE:

• 4,051,384 Tig Torch Cable 13 ft. (4M)

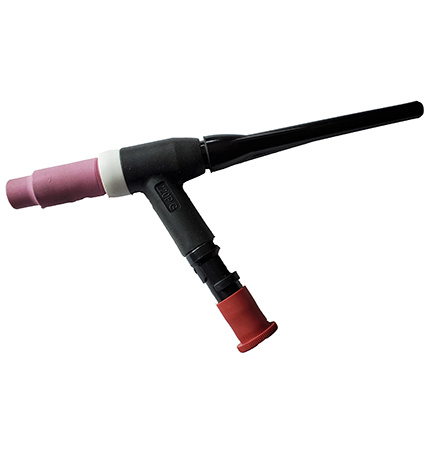

• 44,0350,4409 Tig Torch Body TTB 220P 70d

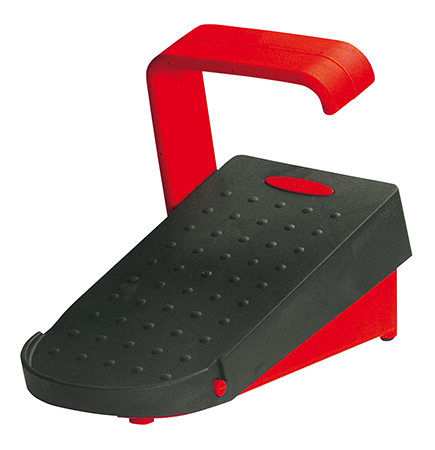

• 4,046,110 Remote Foot Pedal with 16.4 ft. Control Cable
• 4,001,040 Power Cords (1) 120 Volt 15 Amp NEMA 5-15P / (1) 120 Volt 20 Amp NEMA 5-20p / (1) 250 Volt 20 Amp NEMA L6-20P
• 42,0510,0235 Tool Case No 85. Complete with one set of back wheels for moving around
• 42,0510,0103 Tig Welding Gloves (1) Pair Size 11
• 2,0001,3541 Gas Adapter (Threads onto back of machine to allow for standard "B" Argon Hose Fittings to connect)
• 44,0350,1675 Wear Part Kit (Tig Consumable Starter Package)
• 42,0510,0110 Welding Helmet Fazor 1000 Plus
