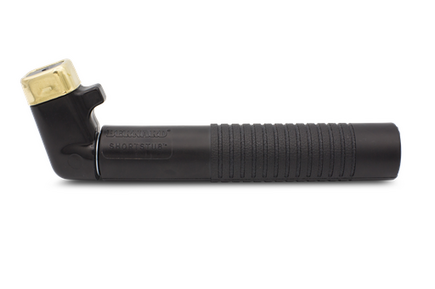

Bernard® Shortstub™ Electrode Holder

Price: $83.22 (package of 1)
Based on unit price: $83.22
Brand:
Bernard®
SKU #: 40B
Quantity

40B 40B Bernard® Shortstub™ Electrode Holder 400 Amp

OVERVIEW

  • Electrode can be used to within one inch of the high heat, high impact head compared with the normal three inches of electrode leftover with typical tong-type holders
  • Designed to greatly improve productivity with quick and easy electrode installation and replaceable head
  • Over 2,000 pounds of gripping pressure allows the electrode to be bent to a desired shape for access to difficult welds

SPECIFICATIONS:

  • Capacity:  400 amps at 60% duty cycle
  • Electrode Size:  1/16″ (1.6 mm) – 1/4″ (6.4 mm)
  • Weight:  17oz (481 g)
  • Length:  8.75″ (22 cm)
  • Cable Connection:  Model “B” large ball point screw connection
  • Cable Socket:  19/32″ (1.5 cm)



Replacement Parts & Accessories (Click to Expand)
Bernard Replacement Head for 40B (includes all individual items) $51.30

BERNARD 40B SHORT STUB ELECTRODE HOLDER
