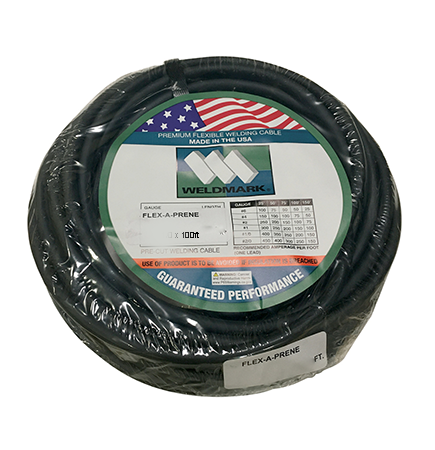

Weldmark Welding Cable 1/0 awg x 25 ft Black

WEM 1/0X25 Weldmark Welding Cable 1/0 awg x 25 ft Black

Details:

Industrial welding cable from Weldmark® is a highly durable and versatile cable designed for use with stingers/holders, whips, leads, and ground cable welding assemblies. This 25 foot, black, 30 gauge copper strand cable is jacketed with a proprietary LSHF EPDM compound, and is resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, flame, gasoline and transmission fluid. It is rated for a maximum of 600 volts and 350 amps. Manufactured in the USA.

Features:

• Industrial welding cable
• HIghly durable and versatile
• Designed for use with stingers/holders, whips, leads and ground cable welding assemblies
• Manufactured in the USA
• Resistant to abrasion, battery acid, diesel fuel, engine coolant, engine oil, ethanol, flame, gasoline and transmission fluid
• Jacketed with proprietary LSHF EPDM compound

Specifications:

• Country of Origin: United States
• Application: Grounding, Welding and Battery Applications
• Amperage Rating ~ Max: 350
• Cable Type: Flexible
• Conductor Strand Count: 975
• Conductor Strand Material: Copper
• Conductor Stranding Type: Rope Lay|Bunch Strands
• Freight Class: 70
• Insulation Thickness Metric: 2.03000 mm
• Insulation Thickness US: 0.08000 in
• Item Length Metric: 7.6200 mm
• Item Length US: 25.0000 in
• Member Supplier Source: IWDC Distribution Centers
• Operating Temperature~Max C: 105.000
• Operating Temperature~Max F: 221
• Operating Temperature~Min C: -50.000
• Operating Temperature~Min F: -58
• Outside Jacketed Cable Diameter Metric: 13.54000 mm
• Outside Jacketed Cable Diameter US: 0.5330 in
• Prop65 Compliant: Y
• Sequential Markings: No
• Standard Pack Units: 25.0
• Standard Pack UOM: RL
• Standard UOM: FT
• Voltage: 600
• Welding Cable Insulation Material: EPDM
• Welding Cable Jacket Color: Black
• Wire Size: 30.000000 in
