Fronius TRANSSTEEL 2200C Multi-Process Stick/Tig/Mig Package. 120-220 Volt 230 amps

49,0410,0035

TRANSSTEEL 2200C MULTI-PROCESS

MIG WELDS ALUMINUM RIGHT OUT OF THE BOX WITHOUT ANY ADDITIONAL ADD ONS.

TIG WELDS IN DC STRAIGHT POLARITY RIGHT OUT OF THE BOX WITHOUT ANY ADDITIONAL ADD ONS.

STICK WELDS MOST ELECTRODES OUT OF THE BOX WITHOUT ANY ADDITIONAL ADD ONS.

SYNERGIC MIG WELDING - LIFT ARC PULSED TIG WELDING - HOT START STICK ELECTRODE WELDING

• Holds up to 8 inch Diameter Spool with a 2" Bore
• Holds 1-2lb spools 4 inch in diameter
• Ready to Mig Weld Aluminum. No other options required to buy. 3/64" diameter wire recommended with machine plugged into a 230 Volt Circuit
• Synergic Mig Welding. Select the Material you wish to weld, The wire size and the gas. The machine does the rest.
• Light Weight at 33lbs. Great for the construction site. Can run up to 100 Meters (328 ft.) of Extension Cord. The machine compensates for any voltage drop and operates off the kilowatts available. Lock 8 can supply custom extension cord sets.
• Works great off generators, requiring only 20 amps of current at 220 Volts. At 120 Volts it can run on either a 15 amp or 20 amp circuit.
• IP23 Weather Rating
• 22.1 x 8.5 x 15 in. 33lbs

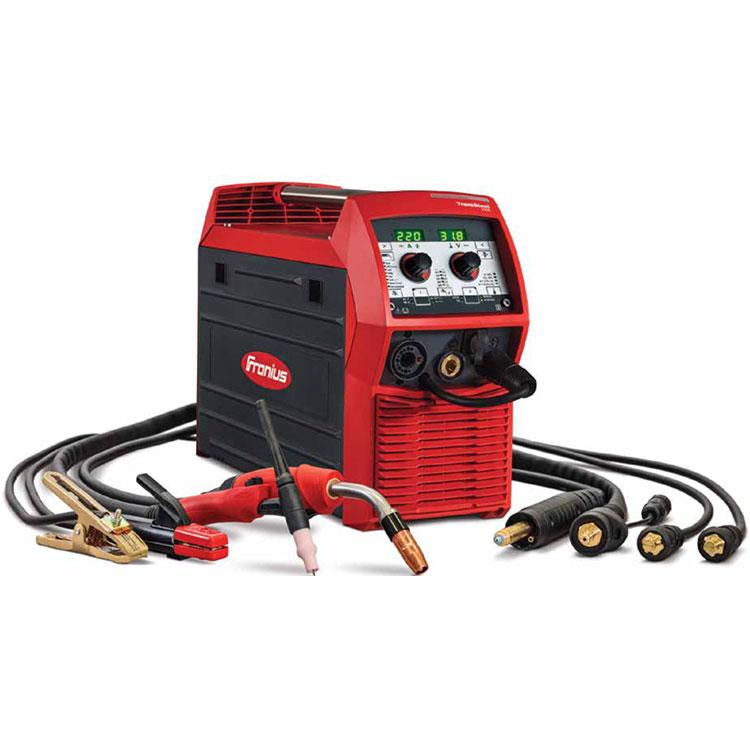

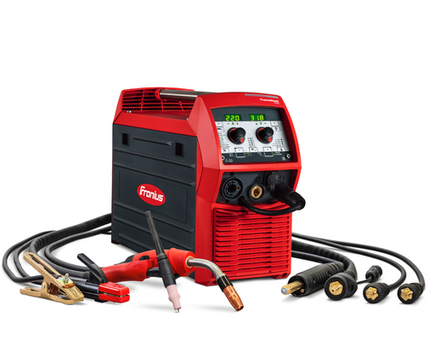

PACKAGE INCLUDES THE FOLLOWING COMPONENTS

• WELDER TransSteel 2200C MV/B 4,075,221,631 1
• MIG GUN Torch MTG 2100S/FSC/3m/45° 4,035,990 1
• TIG Torch TTG 2200A F/UD/4m 4,035,989 1
• WHIP Electrode Holder 43,0004 1
• 120 V 15 A Mains Cable 43,0004,5666 1
• 120 V 20 A Mains Cable 43,0004,5668 1
• 230 V 20 A Mains Cable 43,0004,5801 1
• Pressure Roll 44,0001,0012 1
• Drive Roll 1.2T 42,0001,6692 1
• Drive Roll 0.9/1.0 T 42,0001,6689 1
• Steel Inner Liner 1.2mm 40,0002,0042,005 1
• .035" Contact Tip 0.9mm 42,0001,4462 2
• 3/64" Contact Tip 1.2mm 42,0001,4464 2
• Bearing Roll 42,0408,0006 1
• Ground Cable 43,0004,0479 1
• Gas Hose 44,0001,3442 1
